Description

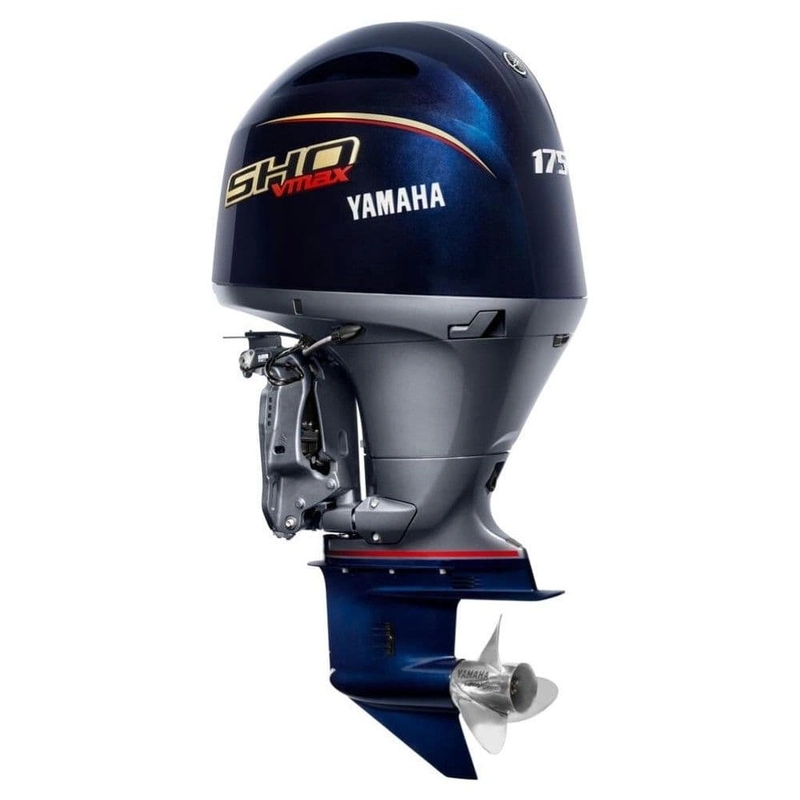

Yamaha VF175XB
Mechanical Control | Electric Start | Power Trin And Tilt, 227kg
The streamlined cowling design, with aggressive, stylish V MAX graphics, conceals advanced technology features like a 16-valve, double-overhead cam engine layout with variable camshaft timing and electronic fuel injection but theres no hiding the blistering acceleration and heart-pumping top speed.
From a practical viewpoint too, this is no ordinary outboard. For example, the three-phase, high-power (50A) alternator provides plenty of juice to power all the on-board electronics. Whats more, it delivers enough power to charge your batteries even at trolling speed, so you will never run out of power.
Engine Specifications:
Engine type: 4-stroke
Displacement: 2785 cm³
No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
Bore x stroke: 96.0 mm x 96.2 mm
Prop shaft output at mid range: 128.7kW / 5,500 rpm
Full throttle operating range: 5,000 – 6,000 rpm
Lubrication system: Wet sump
Fuel Induction System: EFI
Ignition / advance system: TCI
Gear ratio: 1.86 (26/14)
Dimensions:
Recommended boat transom height: X 643 mm
Weight with propeller: VF175XB: 227 kg
Oil pan capacity: 4.5 litres
Features:
Control: Mechanical Remote Control / Throttle and Gear (MEC RC)
Starting Method: Electric Start (ES)
Trim and tilt method: Power trim and tilt (PTT)
Battery Charging: 12v – 50A Output
Propeller: Included
Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits” Section View Section
