Description

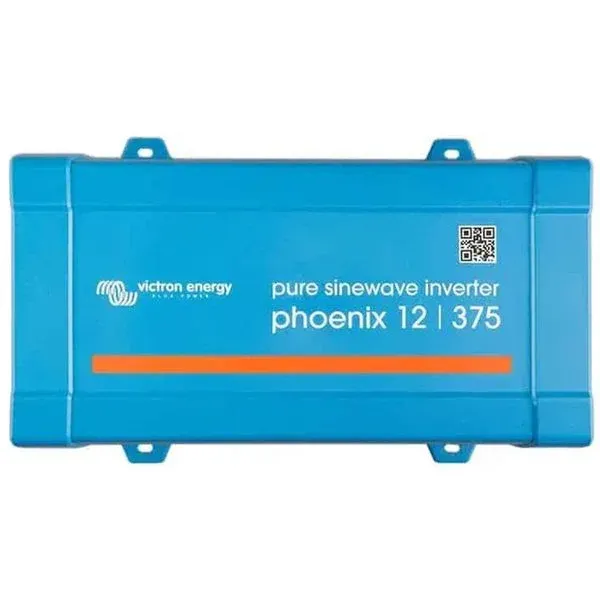

The Victron Phoenix inverter is a power inverter designed with high efficiency and performance in mind. It uses true sine wave Alternating Current to exactly replicate domestic current, allowing the use of 230V appliances off a 12 volt leisure battery. It is also compact and lightweight, making it perfect for use in the marine and automotive industries.
These inverters feature an RS-485 communication port, which can be used to connect the inverter to a PC or laptop (with the to USB interface and by downloading VEConfigue software from the Victron website). This device can then control the inverter and allows the adjustment of parameters and settings such as output voltage/frequency, over and under voltage settings and relay settings.
This model is the PIN121371400 which has a continuous power output rating of 375VA at 25°C.
| Approvals | EN 60335-1, EN 55014-1 / EN 55014-2 |
| Connection [AC] | Hard-wired |
| Efficiency | 0.93 |
| Height | 260mm |
| Operating Temperature | -40°C to +65°C |
| Rating | IP20 |
| Voltage | Input: 9.5V – 17V DC, Output: 230V AC ± 2% |
| Weight | 3.75kg |
| Width | 165mm |
| Brand | Victron |
| Style | Sine Wave Inverter |
| Connections | Battery: 2+2 M8 bolts, Output connection: Screw terminals |
| Frequency | Output: 50Hz ± 0.1% |
| Model | Phoenix 12/375 |
| Replaces | Victron PIN123750400 |
| Optional Remote Panel | Yes |
| Cables Included | No |
| Output Frequency [Hz] | 50 |
| Waveform | True Sine Wave |
| Connection [DC] | M8 stud (twin) |
| Depth | 86mm |
