Description

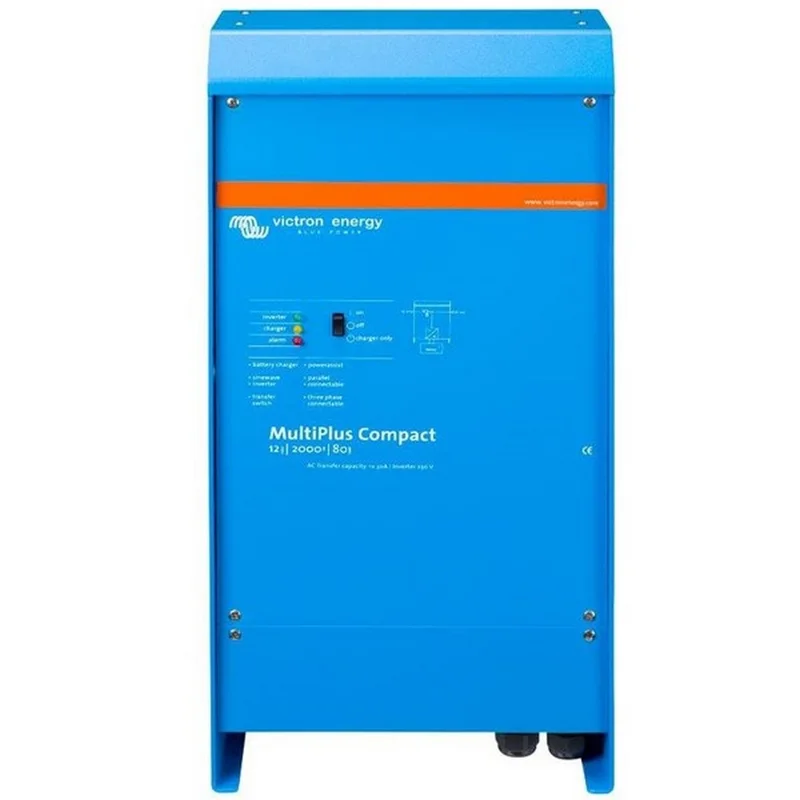

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
• 1600 Watt peak power
• 700 Watt/800VA continuous power
• 35A Battery charger
• 4A Float charge for starter battery
• 16A Transfer switch
• UPS Power Assist
• Dimensions (H x W x D) 375 x 214 x 110 mm
• Weight: 10 kgs
| Application | FLA, SLA, AGM, GEL, LiFePO4 Batteries |
| Approvals | CE Certified |
| Capacity | Recommended Battery Capacity: 200 – 350 Ah |
| Charge Characteristic | Automatic, adaptive |
| Charge Current | 35amp |
| Connection [AC] | ST-18i plug |
| Continuous Output | 700w |
| Efficiency | 93% |
| Height | 375mm |
| Input | 9.5v – 17v |
| Output | 230 v ac |
| Peak Power | 1600w |
| Rating | N/A |
| External Temperature Sensor | Yes |
| Voltage | 9.5V – 17V DC, 230V AC |
| Weight | 10kg |
| Width | 214mm |
| Brand | Victron |
| Maximum Output Current [A] | 35 |
| Number of Outputs | 1+ 4A float |
| Additonal Float Charge Output | 4A |
| Optional Remote Panel | Yes, see data sheet |
| Cables Included | Yes, 1.5M DC |
| Output Frequency [Hz] | 50 |
| Output Power [W] Continuous | 800 |
| Output Power [W] Peak | 1600 |
| Waveform | True Sine Wave |
| Connection [DC] | 8mm rings |
| Depth | 110mm |
MultiPlus Datasheet 800VA 5kVA EN
Manufacturer Part Number: VV-028
