Description

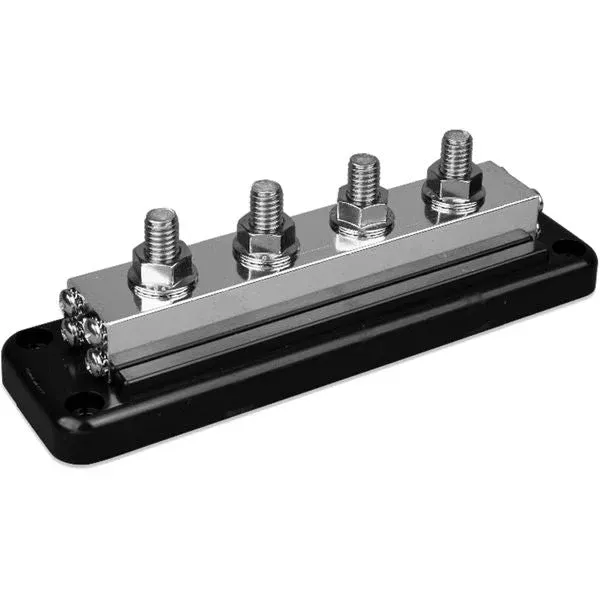

Victron Busbars are suitable to be used for high current distribution and at the same time they provide connections for batteries and/or other DC equipment. This Victron Busbar features 4 terminals and has a 600 amp current rating. Each VBB160040010 busbar is supplied with a removable protection cover.
| Height | With Cover: 65mm (2.6″), Terminal: 19mm (0.76″) |
| Material | Stainless Steel Terminal, Flange Nut & Screw, Tin-plated Copper Busbar Strip, Black ABS Base & Cover |
| Voltage | Max. 70V DC |
| Width | With Cover: 216mm (8-1/2″) |
| Brand | Victron |
| Colour | Black |
| Connections | 4 x 3/8″ Terminals, 8 x 0.164″ Screw Terminals |
| Diameter | Terminal: 9.53mm (3/8″), Screw Terminal: 4.2mm (0.164″) |
| Dimensions | Busbar Strip: 19mm x 24mm, Distance Between Mounting Hole Centres: 33.5mm x 158.7mm |
| Torque | Terminal: 17 N/m (180 lbf/inch), Screw Terminal: 2 N/m (17 lbf/inch) |
| Amps | 600A |
| Depth | With Cover: 86mm (3.4″) |
victron busbar 600a datasheet
