Victron Auto transformer – 120/240V input/output – 100A

Description

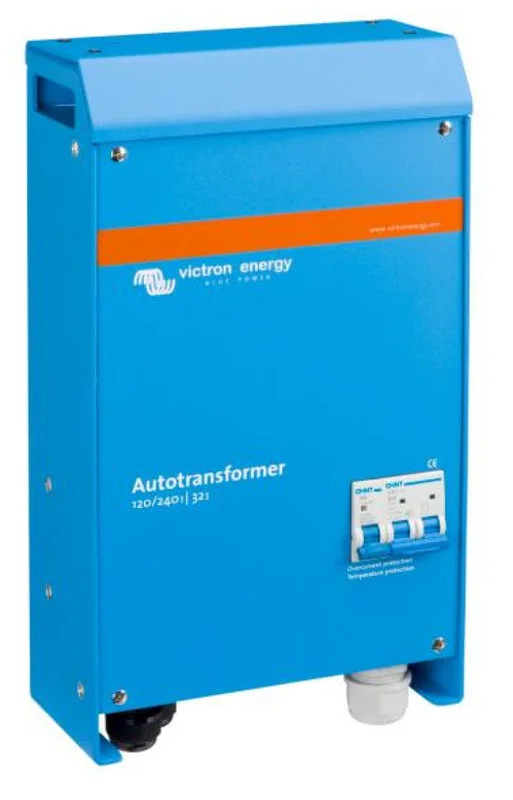

Victron Auto transformer – 120/240v input/output – 100A – 425x214x110 (HxWxD) – 14kg (ITR000100100)(ITR000100101 )

Product Information

For step up, step down and split phase balancing

An Autotransformer can be used for step up, step down and split phase output balancing purposes.

While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention.

Let us explain

Consider for example a 30A 120/240V split phase supply. The supply could be the grid, a generator or two stacked inverters.

Some of the loads connected are 240V, others are 120V. On each 120V leg the load should not exceed 30A. The problem is that as soon as 120V loads are connected, the two legs will show a different current. This is because the 120V loads on the two legs will never be balanced.

A 120V 1200W hairdryer, for example, will draw 10A from one leg. A 120V washing machine could even draw in excess of 20A from one leg. Between the two legs the difference in current, or current unbalance, will therefore often be 20A or more.

This means that the 30A supply will not be used up to its full potential. By the time one leg draws 30A, the other leg may be drawing no more than 10A, and increasing the 240V load, for example, will result in an overload of one leg while the other leg still has spare capacity.

Theoretically, the total power that can be drawn from a 30A 120/240V supply is 30 x 240 = 7,2 kVA. In case of 20A unbalance, the practical maximum will be 30 x 120 + 10 x120 = 4,8kVA, or 67% of the theoretical maximum.

The solution is an Autotransformer.

By leaving the neutral of the split phase supply unused, and connecting an Autotransformer to create a new neutral, as shown in figure 1, any load unbalance is ‘absorbed’ by the Autotransformer. In case of a 30A supply, the load can be increased to 7,2kVA, and a 20A load unbalance will result in one leg supplying 40A, and the other leg 20A. The 20A difference will flow through the neutral and the windings of the Autotransformer. The current through both 120V wires of the split phase supply will be 30A.

Ground relay for use with Multi or Quattro Inverter/Chargers included

When operating in inverter mode, the neutral output of the inverter/charger must be connected to ground to

guarantee proper functioning of a GFCI. In case of a split phase supply the neutral must be grounded. For this

purpose a grounding relay is built in the autotransformer’s enclosure. The relay is controlled by the 230/240V

Multi or Quattro.

Temperature protected

In case of overheating, the Autotransformer is disconnected from the supply. Reset is manual.

Please see the datasheet in the Additional Information to compare model specifications.

Datasheet-Isolation-Transformers-EN

Manufacturer Part Number: ITR000100101
