Description

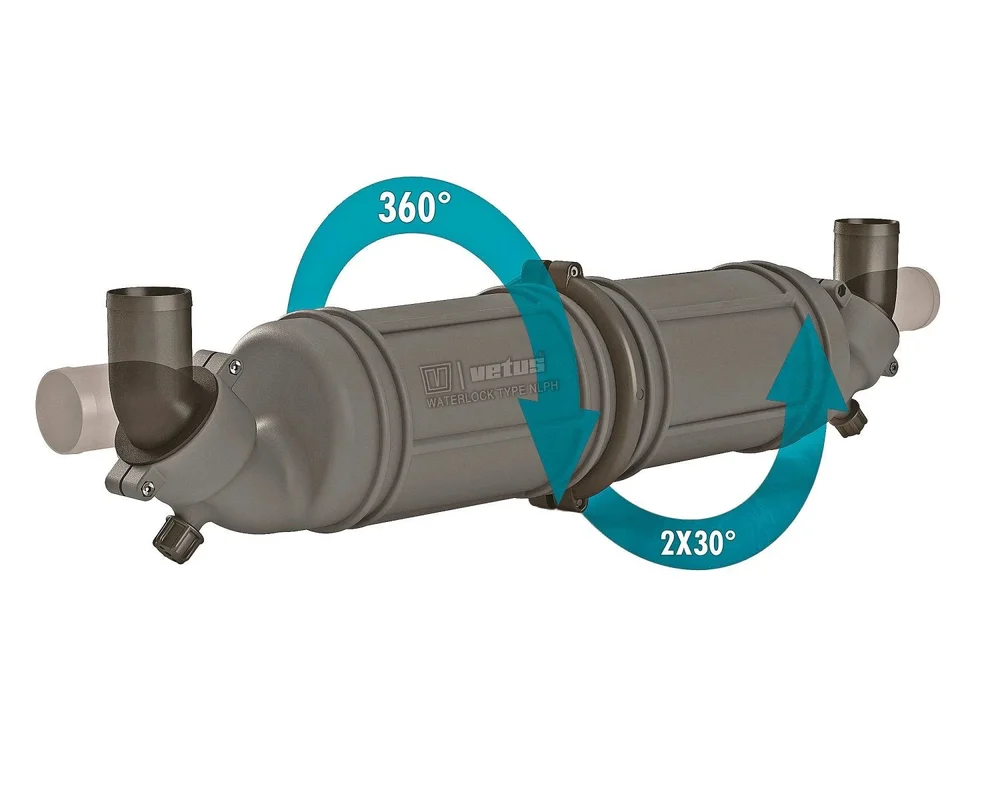

Horizontal two-chamber waterlock/muffler with rotatable components and hose connections. Simple and time-saving installation. Capacity 10 to its unique three-chamber technology, this waterlock/muffler reduces sound so effectively that it is an incredible 10dB quieter than traditional waterlocks. Its rotatable chambers and hose connections ensure quick and simple installation, evenin the most confined spaces.
Specifications
| Function | Waterlock + Muffler |
| Function | Waterlock + Muffler |
| Capacity (litres) | 10 |
| Capacity (litres) | 10 |
| Capacity (gallons) | 2.6 |
| Inlet hose connection diameter (mm) | 90 |
| Inlet hose connection diameter (mm) | 90 |
| Inlet Hose connection diameter (inch) | 3 1/2 |
| Outlet Hose connection diameter (mm) | 90 |
| Outlet Hose connection diameter (mm) | 90 |
| Outlet Hose connection diameter (inch) | 3 1/2 |
| Length (mm) | 879 |
| Length (mm) | 879 |
| Length (inches) | 34 39/64 |
| Width (mm) | 155 |
| Width (mm) | 155 |
| Width (inch) | 67/64 |
| Height (mm) | 155 |
| Height (mm) | 155 |
| Height (inch) | 67/64 |
| Position of the waterlock | Horizontal |
| Position of the waterlock | Horizontal |
| Heavy Duty | No |
| Heavy Duty | No |
| Rotatable hose connections | Yes |
| Rotatable hose connections | Yes |
| Rotatable body parts | Yes |
| Rotatable body parts | Yes |
Support & manuals
Installation manual Waterlock NLPH
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
