Description

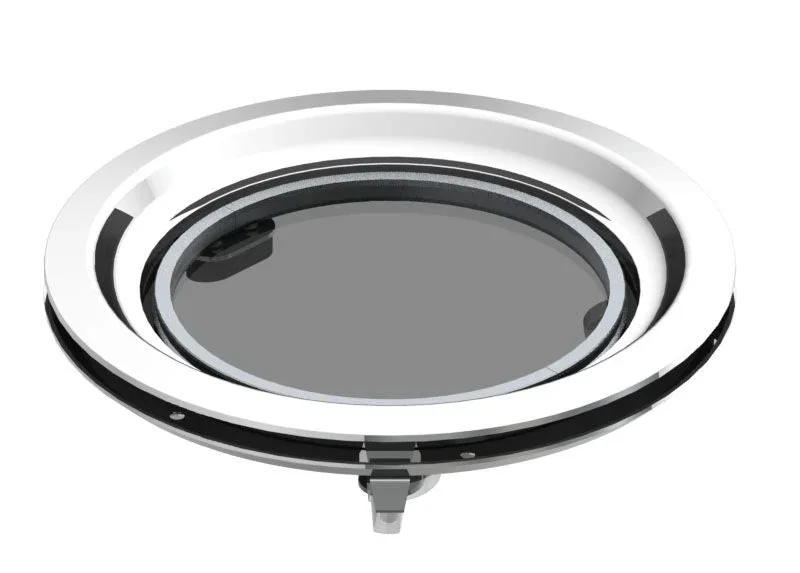

Suitable for use in the hull side. Stainless steel inner frame. “Smoke” coloured 8 mm acrylic. As standard a mosquito screen is supplied.
Heavy duty portholes! These portholes are suitable for use in the hull side. The 8mm ‘smoke’ coloured acrylic is set in stainless steel inner frame.
PWS31A1 has the following specifications:
Specifications
| Material | Stainless steel (AISI 316) |
| Material | Stainless steel (AISI 316) |
| Type mosquito screen | HOR31S |
| Type mosquito screen | HOR31S |
| CE mark | AI |
| CE mark | AI |
| Shape | Round |
| Shape | Round |
| Opening pane | Framed |
| Opening pane | Framed |
| Cut-out diameter (inches) | 7 13/16 |
| Diameter (inches) | 8 11/16 |
| Cut-out diameter (mm) | 198 |
| Cut-out diameter (mm) | 198 |
| Diameter (mm) | 220 |
| Diameter (mm) | 220 |
Support & manuals
Installation and user manual PMS, PWSDoC Porthole PWSInstallation and user manual Portholes PL, PM, PW, PX, PZ
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
