Description

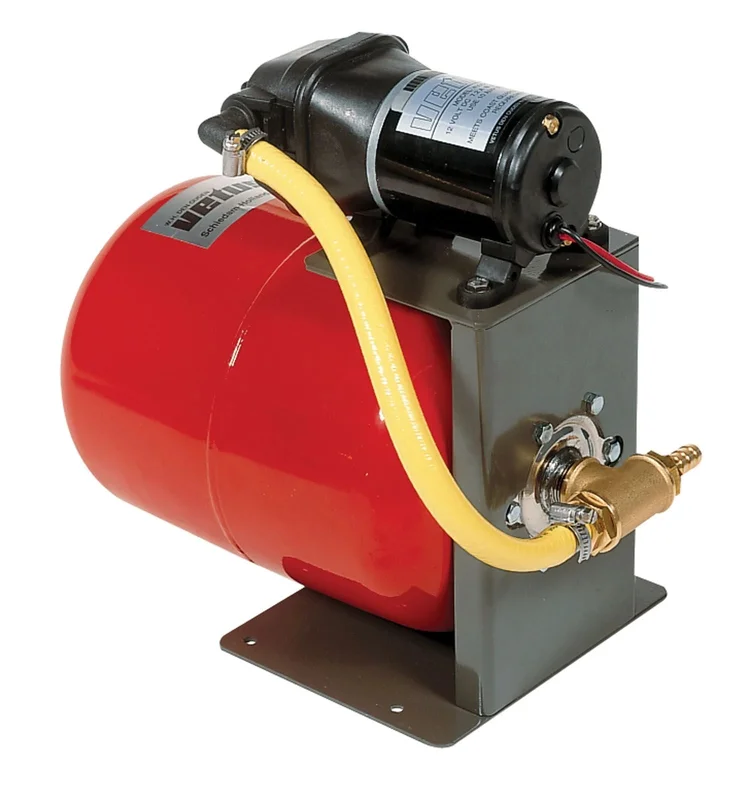

The HF1219 pressurized water system provides constant water flow without starting the pump each time water is required, which reduces noise and VETUS pressurized water system provides a constant flow in the fresh water circuit of the boat. It is comparable with a piped water system at home. The pressurized tank, with arubber diaphragm inside, prevents the pump motor being started each time a supply of water is required. The diaphragm is suitable for fresh water and can be replaced. This system ensures a constant water flow, saving energy and minimizing noise.
Supplied with:
Specifications
| Voltage (V) | 12 |
| Voltage (V) | 12 |
| Capacity (gallons) | 4.49 |
| Length (inches) | 17 23/64 |
| Height (inches) | 155/64 |
| Width (inch) | 107/16 |
| Length (mm) | 441 |
| Length (mm) | 441 |
| Height (mm) | 383 |
| Height (mm) | 383 |
| Width (mm) | 265 |
| Width (mm) | 265 |
| Capacity (litres) | 17 |
| Capacity (litres) | 17 |
| Weight (lbs) | 16.53 |
| Weight (kg) | 7.5 |
| Weight (kg) | 7.5 |
| Hose connection diameter (inches) | 3/4 |
| Hose connection diameter (mm) | 19 |
| Hose connection diameter (mm) | 19 |
| Max. pressure (psi) | 39 |
| Max. pressure (bar) | 2.8 |
| Max. pressure (bar) | 2.8 |
| Max. suction height (feet) | 9.8 |
| Max. suction height (m) | 3 |
| Max. suction height (m) | 3 |
Support & manuals
Installation and user manual Pressurized-water system HF
