Description

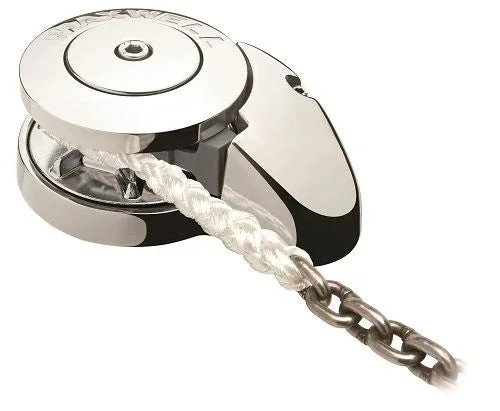

Suitable for 6 mm/7 mm (1/4″) chain and 12 mm (1/2″) nylon rope. The combined stainless steel and chromed bronze RC6 automatic rope/chain anchor winch is Maxwell’s smallest version of the vertical RC Series Windlass for 6 mm/7 mm (1/4″) chain and 12 mm (1/2″) nylon rope. The combined stainless steel and chromed bronze RC6 automatic rope/chain anchor winch is Maxwell’s smallest version of the vertical RC Series Windlass Range.
Specifications
| Motor (W) | 500 |
| Motor (W) | 500 |
| Voltage (V) | 12 |
| Voltage (V) | 12 |
| Vertical/Horizontal | Vertical |
| Vertical/Horizontal | Vertical |
| Rope/chain | Rope/chain |
| Rope/chain | Rope/chain |
| Drum | No |
| Drum | No |
| Weight (lbs) | 18.7 |
| Maximum pull/lift (lbs) | 770 |
| Chain short link (inches) | 1/4 |
| Chain (inch) | 1/4 |
| Rope (inch) | 1/2 |
| Weight (kg) | 8.5 |
| Weight (kg) | 8.5 |
| Maximum pull/lift (kg) | 350 |
| Maximum pull/lift (kg) | 350 |
| Chain short link (mm) | 6 – 7 |
| Chain short link (mm) | 6 – 7 |
| Chain (mm) | 6-7 |
| Chain (mm) | 6-7 |
| Rope (mm) | 12 |
| Rope (mm) | 12 |
