Description

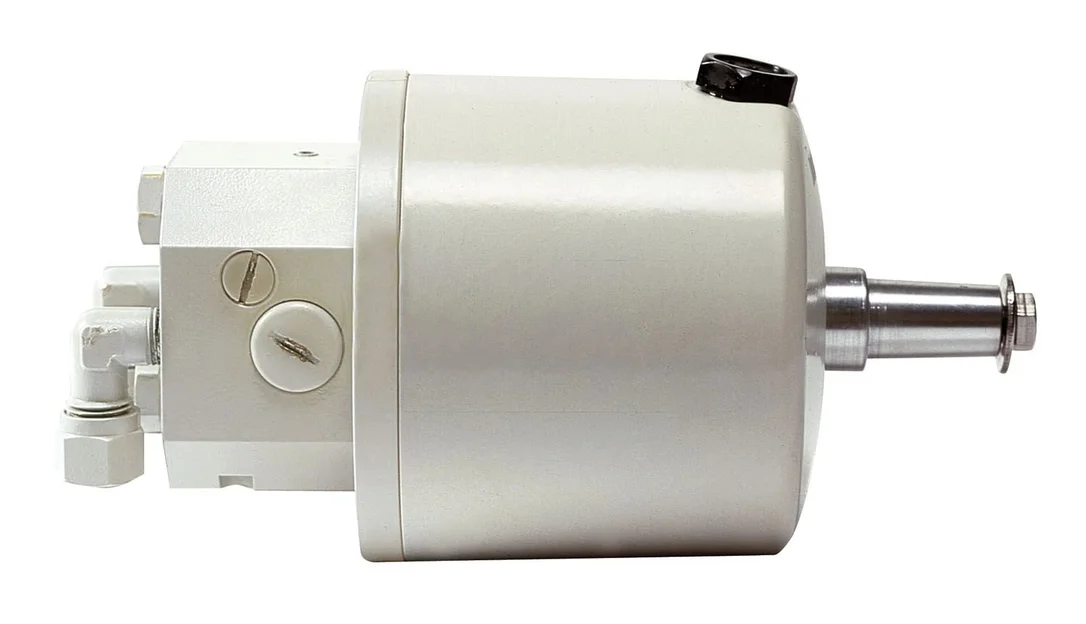

A compact helmpump which can be mounted and operated in any angle. With integral non return valves and max. pressure valves.
Specifications
| Colour | White |
| Colour | White |
| Pump type | HTP30 |
| Pump type | HTP30 |
| Valve | with integral non return/relief valve |
| Valve | with integral non return/relief valve |
| Number of pistons | 5 |
| Number of pistons | 5 |
| Purpose | Outboard |
| Purpose | Outboard |
| Weight (lbs) | 9,03 |
| Tubing diameter (inches) | 1/4 |
| Capacity (in3/rev.) | 1,8 |
| Weight (kg) | 4,1 |
| Weight (kg) | 4,1 |
| Tubing diameter (mm) | 10 |
| Tubing diameter (mm) | 10 |
| Capacity of pump unit (cm³/rev) | 30 |
| Capacity of pump unit (cm³/rev) | 30 |
Support & manuals
DoC Steering pump HTPInstallation manual Steering pumps HTP, HTPR
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
