Description

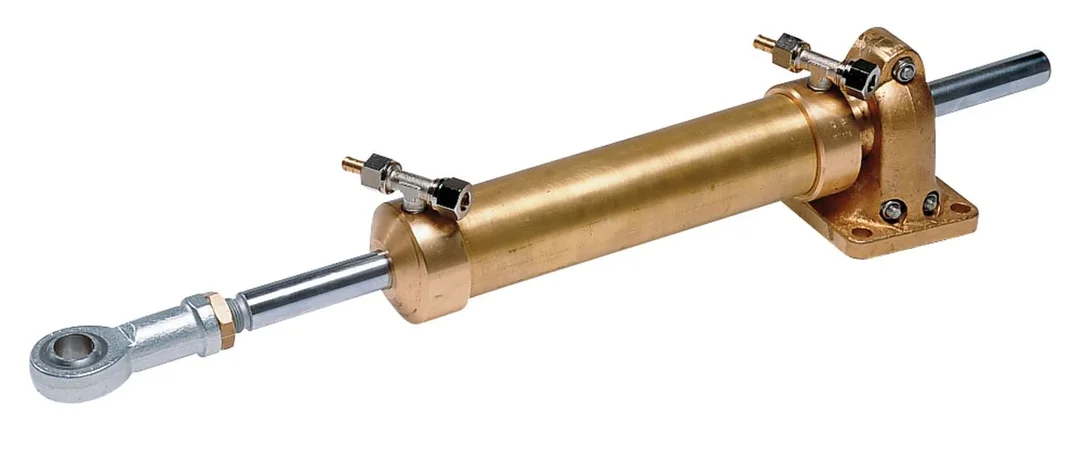

High quality brass bodied cylinder for larger yachts and work boats. Supplied with zinc plated rod end and compression fittings with bleed nipples.
Specifications
| Purpose | Recreational |
| Purpose | Recreational |
| Stroke (inches) | 8 7/8 |
| Tubing diameter (inches) | 3/8 |
| Tubing diameter (mm) | 10 |
| Tubing diameter (mm) | 10 |
| Stroke (mm) | 225 |
| Stroke (mm) | 225 |
| Cylinder volume (cubic inches) | 21,7 |
| Cylinder volume (cm³) | 356 |
| Cylinder volume (cm³) | 356 |
| Length of tiller arm (inches) | 7 23/32 |
| Length of tiller arm (mm) | 196 |
| Length of tiller arm (mm) | 196 |
| Weight (lbs) | 17,6 |
| Weight (kg) | 8 |
| Weight (kg) | 8 |
| Max. torque (Nm) | 1717 |
| Max. torque (Nm) | 1717 |
Support & manuals
DoC Hydraulic cylinder MT, MTCInstallation manual Hydraulic Steering Systems MTC30-175
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
Reviews
There are no reviews yet.
