Description

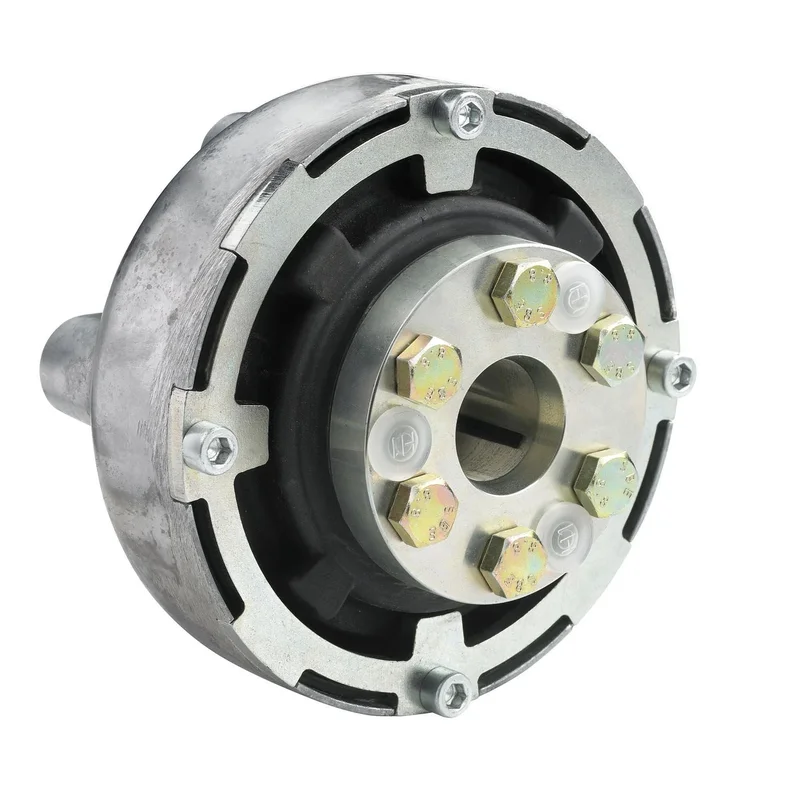

The UNIFLEX coupling permits a misalignment of 2°. It will centre the shaft to the gearbox, resulting in an ideal flexible coupling for a propeller shaft.
Specifications
| Weight (lbs) | 15,2 |
| Shaft diameter (inches) | 19/16 |
| Diameter (inches) | 7 13/16 |
| Height (inches) | 53/16 |
| Weight (kg) | 6,9 |
| Weight (kg) | 6,9 |
| Shaft diameter (mm) | 40 |
| Shaft diameter (mm) | 40 |
| Diameter (mm) | 199 |
| Diameter (mm) | 199 |
| Height (mm) | 131 |
| Height (mm) | 131 |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 5,2 (7,1) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 5,2 (7,1) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,6 (5) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,6 (5) |
Support & manuals
Installation manual Flexible propeller shaft coupling UNIFLEX 13-16
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
Reviews
There are no reviews yet.
