Description

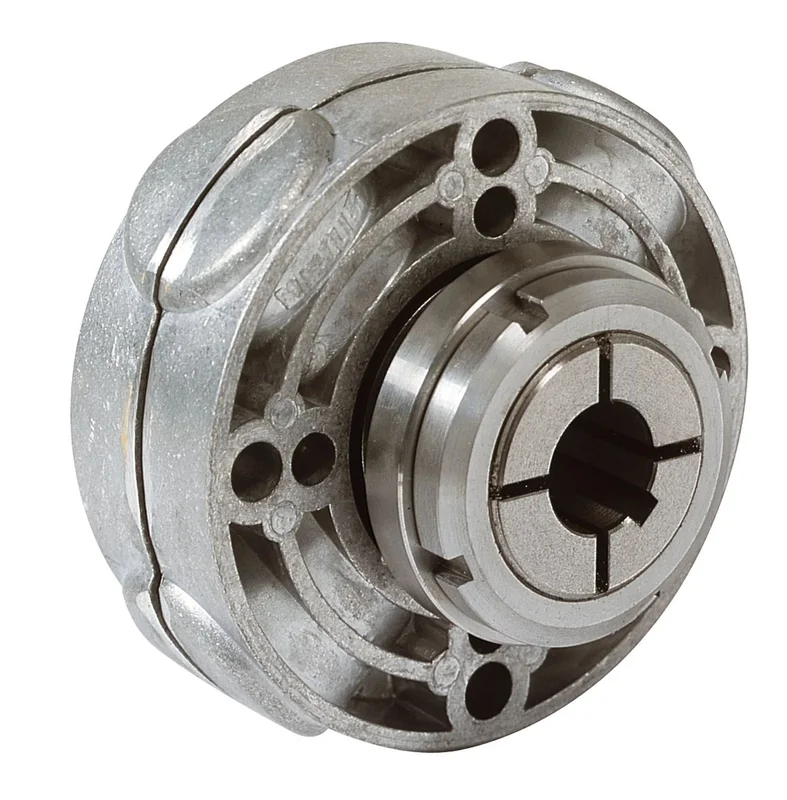

The KO52 flexible coupling has a special conical clamping hub which saves installation time by guaranteeing a 100% concentric fit. Suitable for V-drives.
Specifications
| Weight (lbs) | 5,95 |
| Shaft diameter (inches) | 1.18 |
| Diameter (inches) | 5 25/64 |
| Height (inches) | 3 5/16 |
| Weight (kg) | 2,7 |
| Weight (kg) | 2,7 |
| Shaft diameter (mm) | 30 |
| Shaft diameter (mm) | 30 |
| Diameter (mm) | 137 |
| Diameter (mm) | 137 |
| Height (mm) | 84 |
| Height (mm) | 84 |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 3,9 (5,3) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 3,9 (5,3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,3 (4,5) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 3,3 (4,5) |
Support & manuals
Installation manual Flexible coupling type 6
