Description

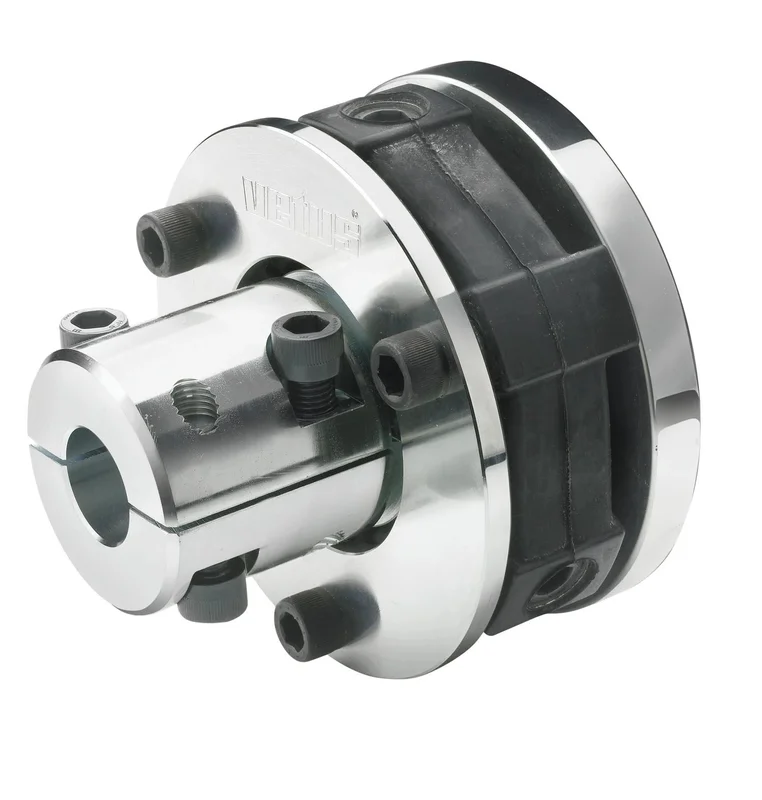

The BULFL162 ensures optimum damping of vibrations. Excellent alignment of the propeller shaft due to a special centering ring, with ease of installation.
Specifications
| Shaft diameter (inches) | 40, 45, 50 |
| Diameter (inches) | 8 5/64 |
| Height (inches) | 7 3/4 ( |
| Shaft diameter (mm) | 40, 45, 50 |
| Shaft diameter (mm) | 40, 45, 50 |
| Diameter (mm) | 205 |
| Diameter (mm) | 205 |
| Height (mm) | 197 |
| Height (mm) | 197 |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 12.6 (17.1) |
| DIN 6270B = pleasure craft kW (HP)/100 shaft RPM | 12.6 (17.1) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 9.8 (13.3) |
| DIN 6270A = commercial craft kW (HP)/100 shaft RPM | 9.8 (13.3) |
Support & manuals
Installation manual Flexible propeller shaft coupling BULLFLEX
