Description

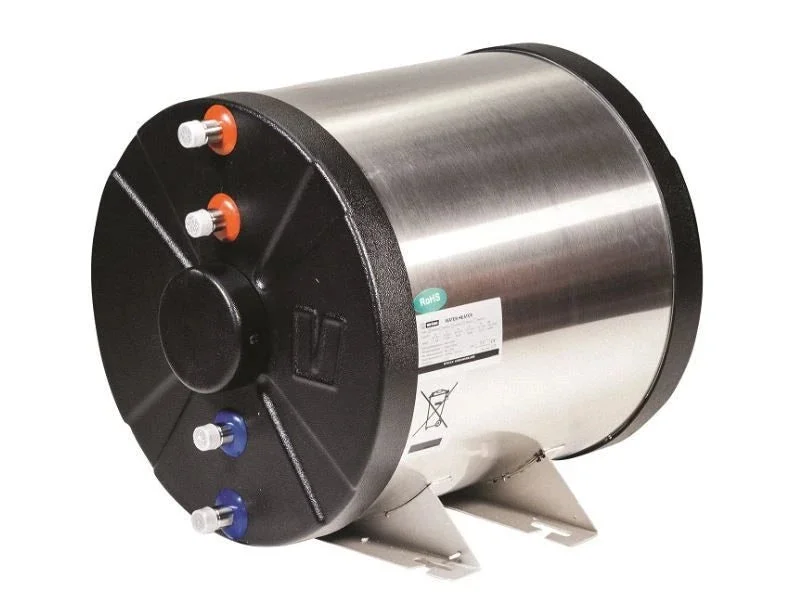

Double-wall calorifiers, type WHDWhile conventional calorifiers use a spiral tube to heat the water, these calorifiers utilize a very efficient double-wall principle which gives them a much greater heating surface thanconventional heating spiral tubes. This means that VETUS double-walled calorifiers will heat the water significantly faster than conventional calorifiers.
Specifications
| Inner tank | Duplex stainless steel |
| Inner tank | Duplex stainless steel |
| Outer tank | Stainles steel AISI 304 |
| Outer tank | Stainles steel AISI 304 |
| Insulation | Polyester foam with S/S jacket |
| Insulation | Polyester foam with S/S jacket |
| Connection engine coolant | G 1/2 |
| Connection engine coolant | G 1/2 |
| Connection fresh water | G 1/2 |
| Connection fresh water | G 1/2 |
| Connection heating element | G 1/2 |
| Connection heating element | G 1/2 |
| Setting of relief valve fresh water | 6 bar (87 lbs / ) |
| Setting of relief valve fresh water | 6 bar (87 lbs / ) |
| Contents of fresh water (gallons) | 5.28 |
| Contents of fresh water (litres) | 20 |
| Contents of fresh water (litres) | 20 |
| Contents of coolant (gallons) | 0.53 |
| Contents of coolant (litres) | 2 |
| Contents of coolant (litres) | 2 |
