Description

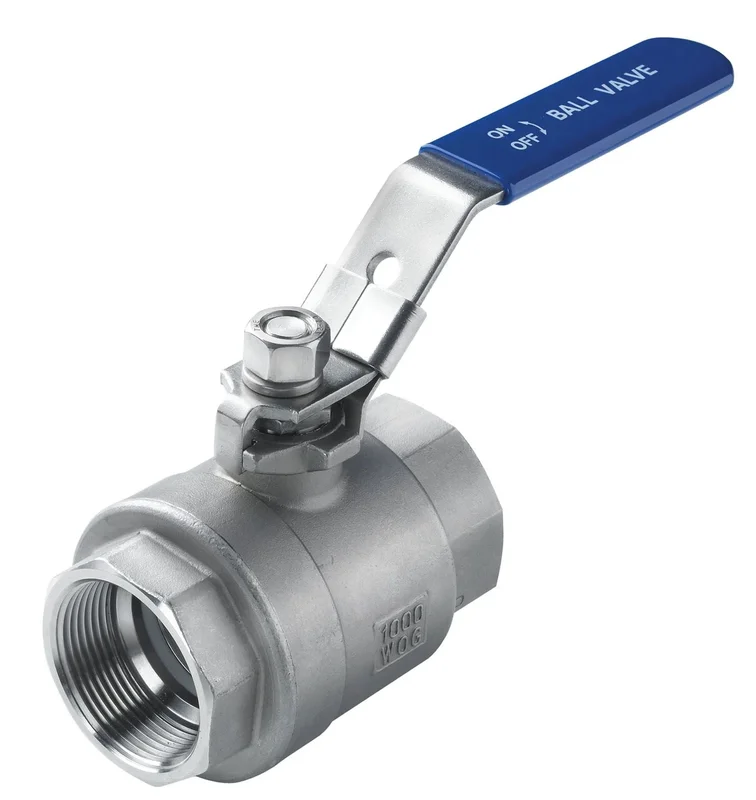

Stainless steel ball valve G3/4″.
Specifications
| Working temp (C) | -20 – +160 |
| Working temp (C) | -20 – +160 |
| Bore | Full Bore |
| Bore | Full Bore |
| Material | Stainless steel (AISI 316) |
| Material | Stainless steel (AISI 316) |
| Thread (G) | 3/4 |
| Thread (G) | 3/4 |
| Normal press (bar) | 69 |
| Normal press (bar) | 69 |
| Weight (lbs) | 1.10 |
| Weight (kg) | 0.4 |
| Weight (kg) | 0.4 |
| Length (mm) | 80 |
| Length (mm) | 80 |
| Height (mm) | 150 |
| Height (mm) | 150 |
| Width (mm) | 40 |
| Width (mm) | 40 |
| Hose diameter in mm | 16 |
| Hose diameter in mm | 16 |
You can view the Page for this Product in the VETUS Catalogue here:
View the Page for this Product in the VETUS Catalogue
You can also view the Category Section in the VETUS Catalogue here:
View the Category Section in the VETUS Catalogue
You can also view the entire VETUS Catalogue here:
View the entire VETUS Catalogue
