Description

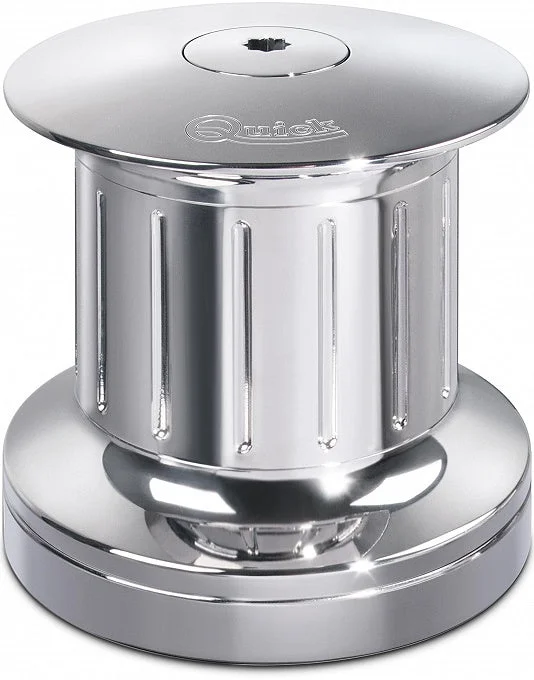

- Warping Winches
- AISI Stainless steel 316 base and drum
- IP67 watertight motor (HYDRO)
- Anodized aluminium gearbox
| TB7 DC | 3500 W | 28 – 40 m | 92 – 132 ft |
| TB7 AC | 3000 W | 30 – 36 m | 98 – 118 ft |
| TB7 AC | 4000 W | 32 – 40 m | 105 – 132 ft |
| TB7 | HYDRO | 32 – 40 m | 105 – 132 ft |
The indication may vary according to the boat type
| Drum | Ø 250 mm / 9″ 27/32 |
| Standard version | TB7 3000 AC |
| Motor power | 3000 W AC |
| Motor supply voltage | 230/400 V THREE-PHASE* |
| Maximum pull | 2800 Kg / 6173 lb |
| Maximum working load | 930 Kg / 2050 lb |
| Maximum chain speed (2) | 15 m/min 49.2 ft/min |
| Ø Drum | 250 mm / 9″ 27/32 |
| Weight | 83 Kg / 183 lb |
(*) On request available 230V Single-phase motor (for power up to 3000W)
Dimensions
TB7 3000 AC
Deck thickness:
30÷60 mm (1 3/16″÷2″ 5/16)
On request, shaft and studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Nylon handle | |
Optional accessories
|
Electric |
UP/DOWN |
Foot |
handheld |
Radio remote |
