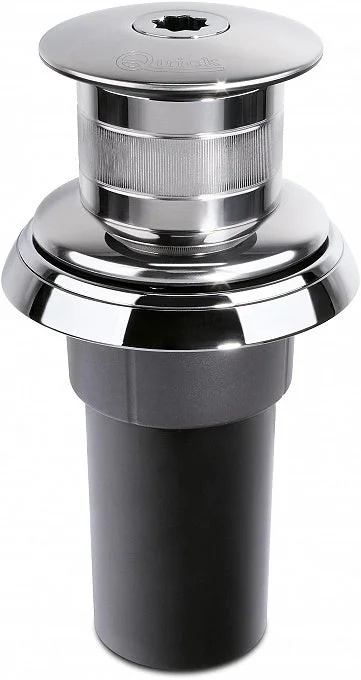

Description
- Warping Winches
- AISI Stainless steel 316 base
- Vertical watertight motor for easy and fast drop-in installation
- Anodized aluminium gearbox
The TM3 warping winche is equipped with an epicyclical gearbox, that provides much higher efficiency 40% compared to equivalent traditional gearboxes.
| TM3 | 500 W | 8 – 12 m | 26 – 39 ft |
| TM3 | 800 W 12V | 11 – 14 m | 36 – 46 ft |
| TM3 | 800 W 24V | 11 – 18 m | 36 – 59 ft |
The indication may vary according to the boat type
| Drum | Ø 130 mm / 5″ 1/8 |
Supplied accessories standard
| Contactor units | Nylon handle | |||||||||||||||||
|
Optional accessories
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
Handheld remote control |
Radio remote control |
| Standard version | TM3 1000 |
| Motor power | 800 W |
| Motor supply voltage | 12 V |
| Maximum pull | 820 Kg 1808 lb |
| Maximum working load | 290 Kg 639 lb |
| Working load | 95 Kg 209 lb |
| Current absorbtion @ working load (1) | 80 A |
| Maximum chain speed (2) | 25,8 m/min 84.6 ft/min |
| Maximum chain speed @ working load (2) | 16,8 m/min 55.1 ft/min |
| Drum Ø | 130 mm 5” 1/8 |
| Weight | 8,1 Kg 17.8 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken considering drum diameter |
Dimensions
TM3 1000
Deck thickness:
20÷30 mm (25/32″÷1″ 3/16)
On request, studs can be suppliedfor greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Contactor units | Nylon handle | |||||||||||||||||
|
Optional accessories
| Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot Switches |
Handheld remote control |
Radio remote control |
