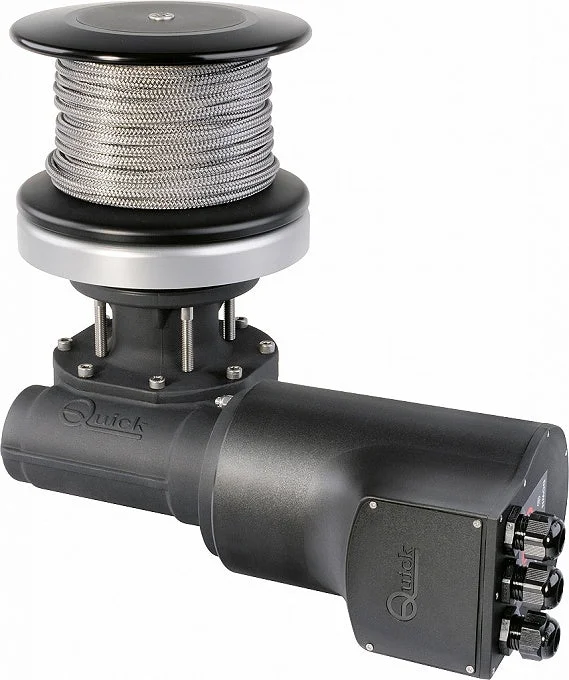

Description
- Capstans with roller for rope
- Anodized aluminium base and drum
- IP67 watertight motor
- Anodized Aluminium gearbox (1400W)
- Technoplymer gearbvox (700W / 1000W)
Supplied accessories standard
| Contactor units | ||||||||||||||||||
|
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Radio remote |
| Standard version | Thor 700 P | |
| Motor power | 700 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 850 Kg 1874 lb |
850 Kg 1874 lb |
| Maximum working load | 250 Kg 551 lb |
300 Kg 661 lb |
| Working load | 80 Kg 176 lb |
100 Kg 220 lb |
| Current absorbtion @ working load (1) | 90 A | 55 A |
| Maximum chain speed (2) | 27,4 m/min 89.9 ft/min |
26,4 m/min 86.6 ft/min |
| Maximum chain speed @ working load (2) | 14,4 m/min 47.2 ft/min |
14,8 m/min 48.5 ft/min |
| Drum Ø | 190 mm 7” 1/2 |
190 mm 7” 1/2 |
| Weight | 14,1 Kg 31 lb |
14,1 Kg 31 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken considering drum diameter |
Dimensions
Ø 190 mm (Ø 7″ 1/2)
Deck thickness:
25÷50 mm (31/32″÷1″ 31/32)
On request, shaft and studs can be supplied for greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Contactor units | ||||||||||||||||||
|
Optional accessories
|
Hydraulic magnetic |
UP/DOWN |
Foot |
handheld |
Radio remote |
