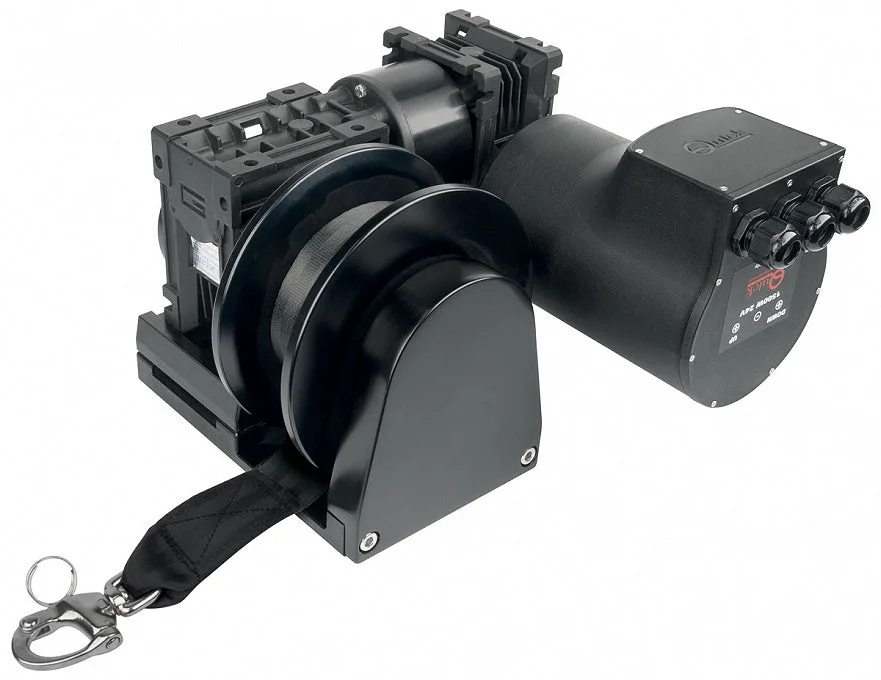

Description
- Capstans with strap-roller
- Anodized aluminium base and drum
- IP67 watertight motor (1000/1500W)
- IP66 watertight (500W)
- Anodized aluminium gearbox
- Plastic cover as standard
THG is available in the ISO 8846 version with protection against ignition
of surrounding flammable gases
Supplied accessories standard
| Contactor units | ||||||||||||||||||||||
|
Optional accessories
| Flat strap with spring catch |
Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot switches |
handheld remote control |
Radio remote control |
| Standard version | THG 1500 | |
| Motor power | 1500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 2000 Kg 4409.2 lb |
2000 Kg 4409.2 lb |
| Maximum working load | 1000 Kg 2204.6 lb |
1200 Kg 2645.6 lb |
| Working load | 400 Kg 88184 lb |
500 Kg 1102.3 lb |
| Current absorbtion @ working load (1) | 108 A | 66 A |
| Maximum chain speed (2) | 6,0 m/min 19.7 ft/min |
8,0 m/min 26.2 ft/min |
| Maximum chain speed @ working load (2) | 5,5 m/min 18 ft/min |
6,8 m/min 22.3 ft/min |
| Drum Ø | 60 mm 2” 23/64 |
60 mm 2” 23/64 |
| Weight | 18,9 Kg 41.7 lb |
18,9 Kg 41.7 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken considering drum diameter |
Dimensions
THG 1500
Deck thickness:
max 50 mm (max 1″31/32)
On request, shaft and studs can be suppliedfor greater deck thicknesses.
Dimensions in mm (inch)
Supplied accessories standard
| Contactor units | ||||||||||||||||||||||
|
Optional accessories
| Flat strap with spring catch |
Hydraulic magnetic circuit breaker |
UP/DOWN control board |
Foot switches |
handheld remote control |
Radio remote control |
