Stainless Rigging Screw Closed Body Fork Swage Stud included
Sale!
marinesuppliesdirect355136

Stainless Rigging Screw Closed Body Fork Swage Stud included

Original price was: £29.99.Current price is: £8.99.

Size:

SKU: 9201058611527 Category:

Description

  • Material: stainless steel
  • Please refer to technical drawing and table below for sizes

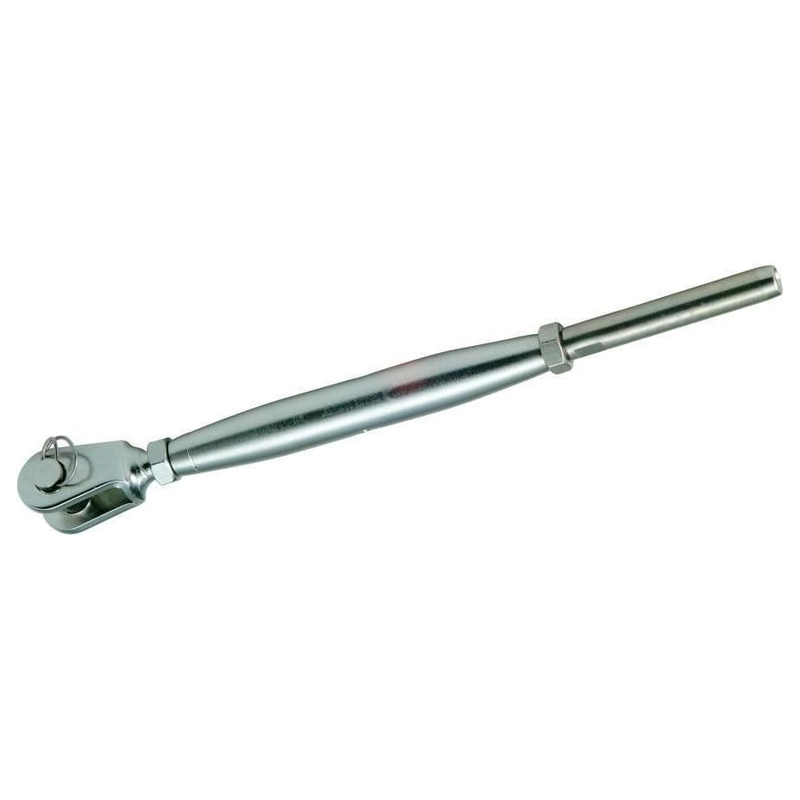

Stainless Steel Rigging Screw with a Clevis Fork at one end for ease of secure connection and Stud/swage on the other end to swage onto the wire.

Price includes the swaging and measuring onto Stainless Wire 1 x 19 standing rigging wire or 7 x 19 Stainless Steel flexible wire.

The purchaser is responsible for choosing the correct product for its particular application.

Not to be used for lifting.

Part G Wire Dia Pin Dia A L1 L2 T Break
UNF mm mm mm mm mm mm Load Kg.
BW-120306-A 1/4 ins 3 6.35 9.5 233 170 13 1300
BW-120408-A 5/16 ins 4 8 11 275 199 15 1700

Additional information

mycustom

Size#3mm Fork and Swage 1/4 Unf Stud BW-120306A, 4mm Fork and Swage 5/16" Unf Stud BW-120408-A
