Description

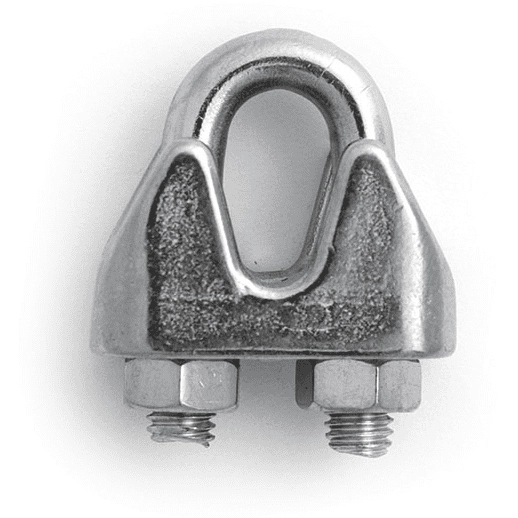

- Wire Rope Grips or Bulldog Grips are used on stainless or galvanised wire rope to make a loop or eye on the end.
- They can also be used to make a temporary joint.
- They must be fitting correctly as incorrect fitting can be dangerous.
- Do not over-tightened as the rope will be crushed or if the bolts are under tightened slipping will occur.
- At least three wire rope grips should be used, with the saddles on the live part of the rope, and the U-bolt pressing on the less heavily loaded tail of the rope.
- When make an loop or eye always use a thimble to stop the wire kinking and losing strength.
- They should be spaced at least six rope diameters apart.
- Do not use them on temporary stays or guys that have to be shifted and re-fastened because the the severe crushing and punishing action of the U-bolt.
- Do not use sections that are damaged by the clip and then straightened out to take the load.
- Do not use bulldog grips on any load hoisting ropes.
| Part | Wire Dia mm |
A | E mm |
F mm |
H mm |
I mm |
L mm |
R mm |
S mm |
| N/A | 2 | M3 | 17 | 4 | 17 | 7 | 10 | 10 | 10 |
| 228439 | 3 | M3 | 21 | 5 | 18 | 8 | 12 | 11 | 10 |
| 384895 | 4 | M4 | 22 | 6 | 21 | 10 | 13 | 13 | 11 |
| 385128 | 5 | M5 | 25 | 7 | 25 | 12 | 13 | 15 | 13 |
| 385078 | 6 | M6 | 32 | 9 | 28 | 15 | 18 | 17 | 16 |
| 384990 | 8 | M6 | 36 | 10 | 31 | 17 | 19 | 20 | 18 |
| N/A | 10 | M8 | 46 | 12 | 38 | 20 | 25 | 23 | 20 |
Quantity discounts available just email marinesupplies@ for a quote.
