Description
Say hello to fast charging! The unique design charges up to 36W on 12V systems and 60W on 24V systems. This makes it ideal for charging modern laptops via the USB-C port. It’s also twice as fast when charging larger tablets, designed to easily charge an iPad Pro and iPhone at the same time.

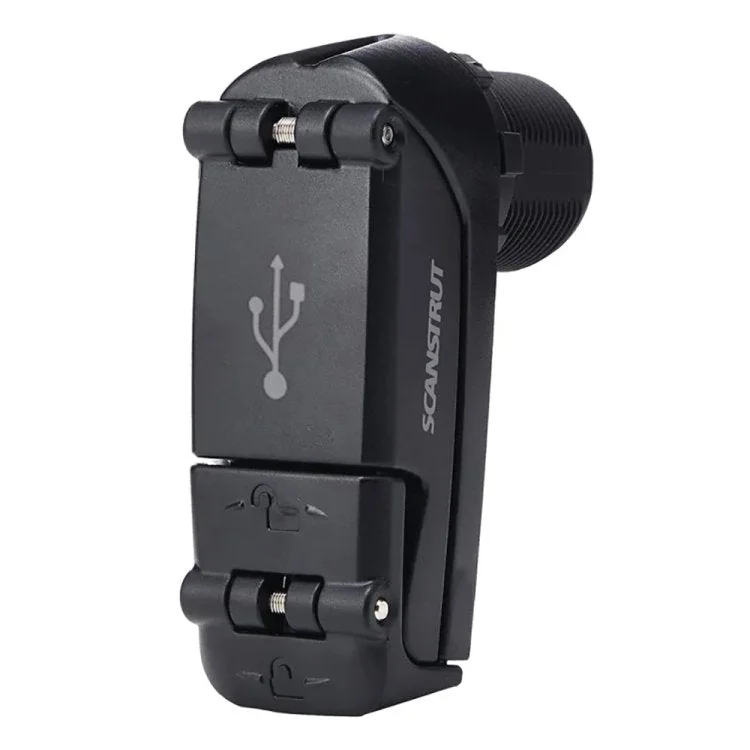

Perfect for where space is at a premium, Charge Pro has a sleek, ultra-compact design with a click-and-lock lid allowing the USB to remain waterproof while in use. Constructed from premium, marine-grade materials, Charge Pro is IPX6 waterproof making it completely wash-down ready.
USB – C output
60W max on 24V system
36W max on 12V system
USB – A output
36W max
The install cut-out matches those of standard USB sockets for easy retrofit or swap of an existing USB charger, allowing you to keep up with the heavier power draws of modern electronic devices.
Universal
• Universal fit for any USB-A or USB-C connectors.
• Fast charge (60W max) up to 2 devices at a time.
• Easy Install, using standard USB mounting hole – 29mm (1 1/8”)
Washdown Proof
IPX6 waterproof with the lid closed.
Marine Ready
• Anti-corrosion coating on the circuit board.
• UV resistant.
• 316 stainless hinge and spring.
Important information
The charge cable supplied with your device (tablet, phone, action camera, etc) must be used to achieve maximum charge performance from this charger. Phones will charge at the same speed whether on a 12V or 24V input voltage system. However, a 24V system must be used to get the full 60W output suitable for fast-charging laptops.
Electrical Information
| Input Voltage | 10-32V DC (12/24V system) |
| Input Current | Max 6 A |
| Output (Type C) | 12V System: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX |
| 24V System: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX | |
| Output (Type A) | 5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A MAX |
| Standby Draw | 0.01W |
| Certification | CE, FCC, C-Tick, ROHS, UKCA |
| Brand | Scanstrut |
|---|---|
| Barcode | 5060114798328 |
