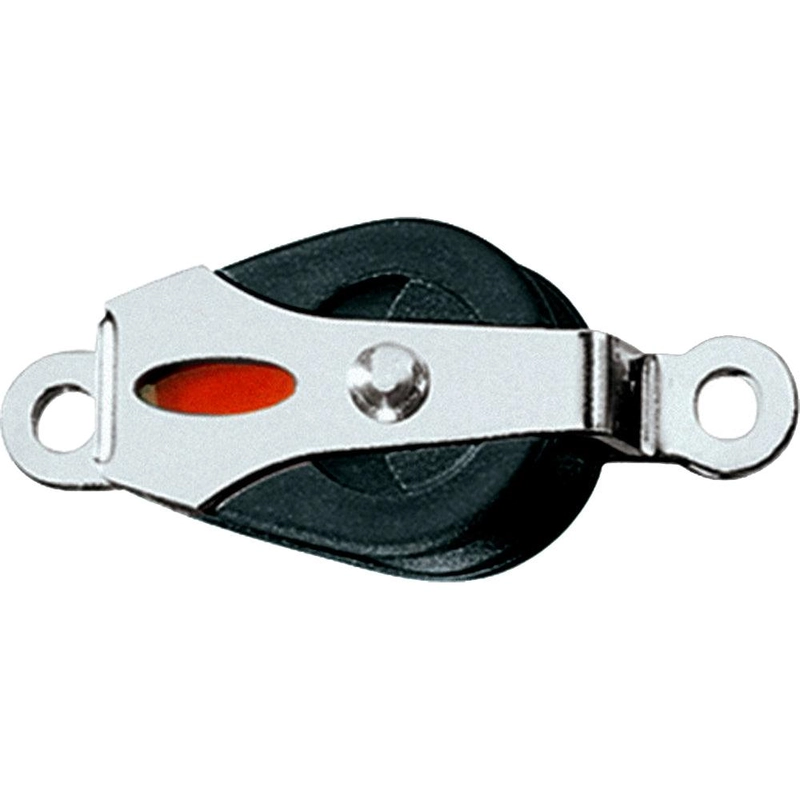

Ronstan Series 20 Ball Bearing Block – Single – Cheek Rivet Mount [RF20151A]

Description

Series 20 Ball Bearing Block – Single – Cheek Rivet Mount

Features:

• Low friction
• High static and dynamic load capacity
• Lightweight
• Suitable for screw or pop rivet mounting
• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction

Applications:

• Dinghy control lines
• Dinghy Vangs
• Cunninghams
• Traveller controls

Materials:

• U.V. Stabilized Acetal sheaves
• Stainless steel ball bearings
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:

Sheave Ø: 20mm(3/4″)

Max. Rope Ø: 6mm(1/4″)

M.W.L.: 200kg(440lbs)

B. L.: 550kg(1,210lbs)

Weight: 17g(0.6oz)
