Description

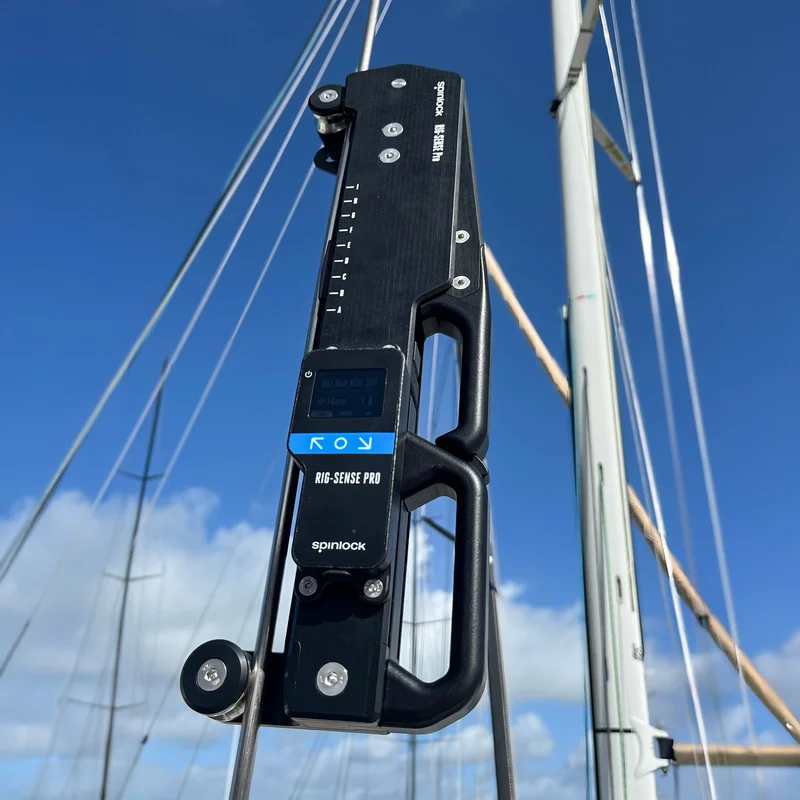

Accurate load measurement for Rod and Wire Sense Pro joins the massively successful Rig-Sense range where we find an increasing number of professional users, measuring and recording loads. Increasingly, professional users are needing to demonstrate that rigging has been installed to a determined load and then recorded and certified.
Masts and rigging need to be installed, commissioned and checked to a set of precise loads, both Rod and Wire. Over the lifetime of the mast and rigging continual checking and referencing to these defined loads is also required.
- Accurate measurement of Ø5-20mm Cable, Ø5-16mm Rod up to 6000kg max tension
- Handheld, simple to operate with a clear digital display
- Interfacing with a comprehensive Rig-Sense App the data is collected and stored for report writing later
- Supplied in protective storage and travel case
- Easy cable size adjustment
- High Contrast read-out, stores multiple cable calibrations
- Small cable deflection to minimize tightening effect from bending
- Cable adjuster increases leverage for smaller cables for increased sensitivity
- Stainless steel deflector sheaves for low wear
- Robust marine construction
- IPX7 water tightness
- Select cable type on display
- Adjust to sliding deflector required setting
- Unlock handle
- Lift handle fully
- Hook lower sheave on cable
- Hook upper sheave on cable
- Close handle
- Adjust cable to desired tension
- Select from multiple units and % of breaking strain
Auto Close Gate
Remains attached to cable even if cable goes slack
Additional lanyard (not shown) to grip cable and prevent falling
Handle Lock
Operated from lower handle
Prevents unsafe one-handed removal
Allows carrying from central handle
Ø5-20mm cable
Ø5-16mm rod
6000kg max tension
Height = 490mm
Width = 50mm
Protrusion from cable = 120mm
Lightweight (2.5kg)
IPX7 waterproof
