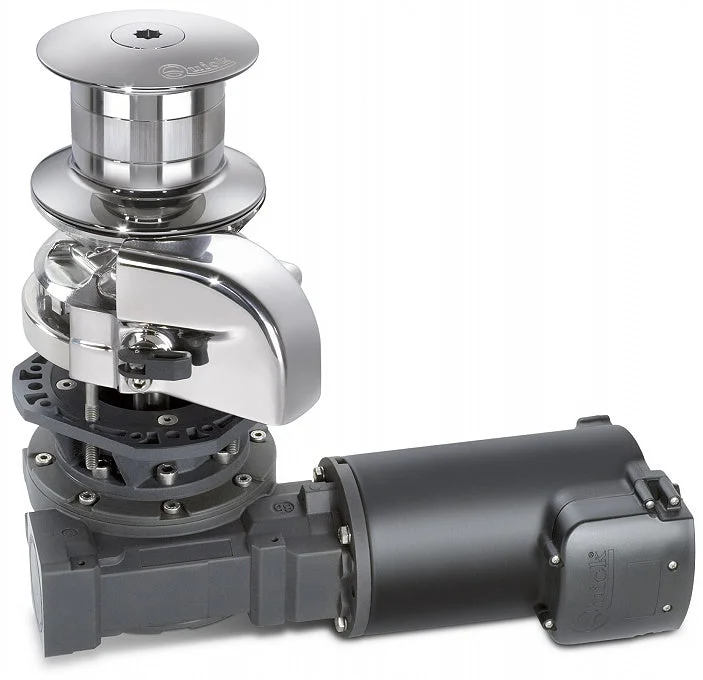

Regal RG5 2324X – 2300W Windlass for 24V Systems with 10mm gypsy With right chain pipe

Original price was: £2,865.00.Current price is: £298.98.

SKU: 15443612467574 Category:

Description

  • Vertical windlasses
  • Base in stainless steel AISI316
  • With and without drum
  • Right or left pipe chain
  • Integrated sensor and magnet for chain counter
  • Manual Free-Fall system
  • IP67 motor watertight (1700 W)
  • IP66 motor watertight(2000/2300W)
  • Anodized aluminium gearbox
For boats from 12 to 24 meters (39 – 79 ft)
Regal 1700 W DC 12 – 18 m 39 – 59 ft
Regal 2000 W DC 16 – 20 m 52 – 66 ft
Regal 2300 W DC 20 – 24 m 69 – 79 ft
Regal 3000 W DC/AC 20 – 24 m 66 – 79 ft
Regal HYDRO 12 – 24 m 39 – 79 ft
Gypsy and Drum Ø 170 mm / 6″21/64
RG5 X/Y – RG5AC X/Y
GYPSY 10 mm – 3/8″ 12/13 mm 14 mm
CHAIN 10 mm 10 mm 3/8″ 3/8″ 13 mm 12 mm 7/16″ 14 mm 14 mm 1/2″
DIN 766 ISO G4 BBB DIN 766 ISO G4 DIN 766 ISO G4
RG5 HYDRO X/Y
GYPSY 12/13 mm 14 mm – 1/2″ 16 mm
CHAIN 13 mm 12 mm 7/16″ 14 mm 14 mm 1/2″ 16 mm 16 mm
DIN 766 ISO G4 DIN 766 ISO G4 DIN 766 ISO
Standard version RG5 2300 X/Y – 2300 X/Y D
Motor power 2300 W
Motor supply voltage 24 V
Maximum pull 2400 Kg / 5291 lb
Maximum working load 850 Kg / 1874 lb
Working load 285 Kg / 628 lb
Current absorbtion @ working load (1) 120 A
Maximum chain speed (2) 41,2 m/min
135.2 ft/min
Maximum chain speed @ working load (2) 22,3 m/min
76.4 ft/min
Weight – Regal – [without drum] 48,7 Kg
107.4 lb
Weight – Regal D – [with drum] 53,1 Kg
117.1lb
1) After an initial period of use
2) Measurements taken with a gypsy for a 12/13 mm chain

Dimensions

RG5 2300 X / DX

Deck thickness:
40÷80 mm (1″ 5/16÷5″ 5/32)
On request, shaft and studs can be supplied for greater deck thicknesses.

Dimensions in mm (inch) RG5 2300 Y / DY

Deck thickness:
40÷80 mm (1″ 5/16÷5″ 5/32)
On request, shaft and studs can be supplied for greater deck thicknesses.

Dimensions in mm (inch)

Supplied accessories standard

Contactor units Stainless steel handle
Modello T6315-24 T6415-24
1700 W 24 V
2000 W 24 V
2300 W 24 V
3000 W 24 V

Optional accessories

Hydraulic magnetic
circuit breaker		 UP/DOWN Switches handheld
remote control		 Chain
counters		 Radio remote
control
