Description

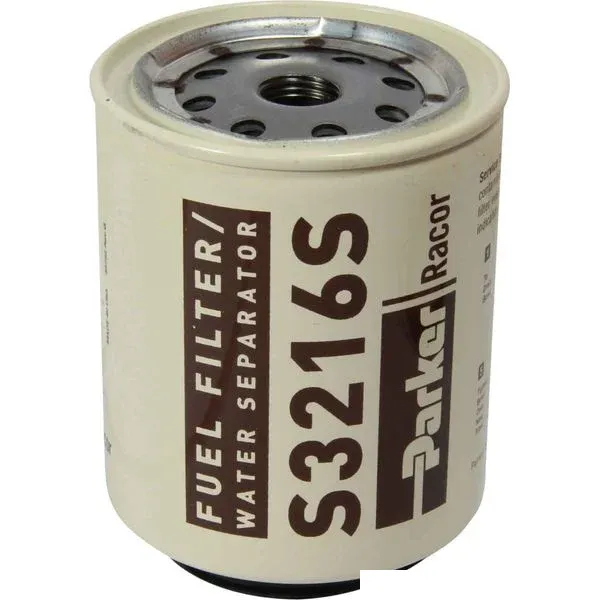

The Parker Racor S3216S is a 2 micron fuel filter element / water separator and is suitable for use with the Parker Racor 75/B32016 range of twin diesel fuel filters (ASAP part numbers 301411 & 301413). The Racor element fits filter heads with 16 x 1.5mm threads and seals with 72.3mm outside diameter (top and bottom seals are supplied with the element).
Never compromise the effectiveness of your Racor fuel filter / water separator, always insist on genuine Racor elements with Aquabloc water repelling properties. Only genuine Racor elements will ensure that your Racor filter performs as designed.
Service Instructions – Frequency of water draining or filter replacement is determined by the contamination level in fuels. Inspect or drain the collection bowl of water daily and replace the filter every 10,000 miles (16,000km), every 500 hours, every other oil change, or at the first indication of power loss, whichever comes first.
Racor elements are colour coded: Brown “S” is 2 Microns, Blue “T” is 10 Microns, Red “P” is 30 Microns.
Please note that the filter bowl is re-usable, do not discard.
| Flow Rate | 75 LPH (20 US GPH) |
| Style | Spin-On Element |
| Element | 2 Micron |
| Unit of Sale | Single Unit |
| Pressure Rating | For Vacuum (Suction Side) or Pressure Applications up to 15 PSI (1 Bar) |
| Thread Size | M16 x 1.5 Center Thread |
| Brand | Racor |
| Series | 75/B32016 |
| Application | Diesel & Petrol (Gasoline). Racor 75/B32016 range of twin fuel filters (ASAP part numbers: 301411 & 301413) |
| Model | S3216S |
| Contents | Filter element, top & bottom seals |
| Height | 101.6mm (4″), Fuel Filter Element: 87mm |
| Diameter | 72.4mm (2.85″) |
Manufacturer Part Number: S3216S
