Description

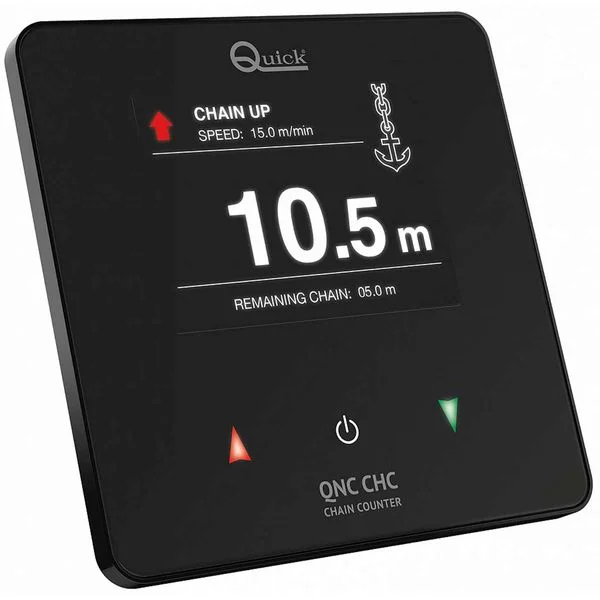

The Quick QNC CHC is a complete and reliable tool to remotely operate a windlass and check the length of the lowered chain.
The lowered chain length is displayed on the IPS 3.5″ high-brightness colour display in metres, feet and fathom.
The panel surface is constructed from black tempered glass with touch control function keys.
Product contents:
– Chain counter QNC CHC
– Protective cover
– Chain counter sensor kit
– Screws for fastening
– Gasket
– Power supply cable and I/O 0.5 m
– Drilling template
– Installation and user manual
– Conditions of Warranty
Key Features
Automatic descent function
Up alarm function
Anchor weighing function in case of sensor failure
Windlass management with auto free fall
High brightness 3.5” colour graphic display
Multilingual user interface
Power supply 12/24 Vdc
Functioning over a wide range of environmental temperatures
CAN bus Communication Interface
| Brand | Quick |
| Voltage | 12V – 24V DC |
| Amps | 160 mA absorbed when idling |
| Contents | Chain counter QNC CHC, Protective cover, Chain counter sensor kit, Screws for fastening, Gasket, Power supply cable & I/O 0.5 m, Drilling template, Installation & use manual, Conditions of Warranty |
| Height | 115mm (4-17/32″), with Cover: 120mm (4-23/32″), Behind Surface: 99.4mm (3-29/32″) |
| Width | 115mm (4-17/32″), with Cover: 120mm (4-23/32″), Behind Surface: 99.4mm (3-29/32″) |
| Depth | Above Surface: 6.2mm (15/64″), with Cover: 8.9mm (11/32″), Behind Surface: 25.8mm (1-1/64″) |
| Weight | 270g (320g with protective cover) |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Dimensions | Distance between fixing hole centres: 96.2mm (3-25/32″) |
quick qnc chc chain counter user manual
Manufacturer Part Number: Q-FNQNCCHCF000B00
