Description

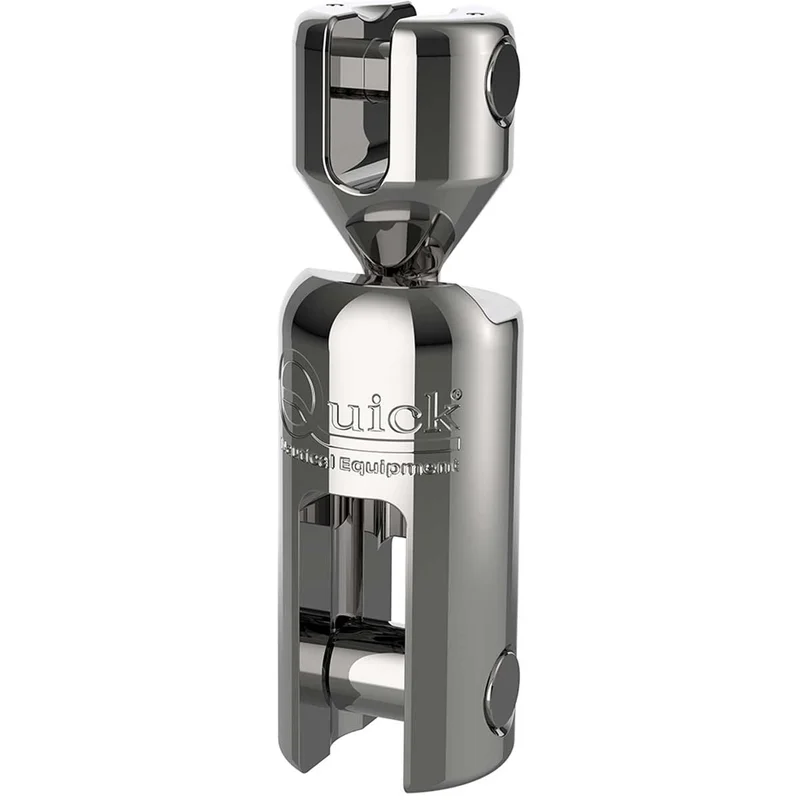

Quick Olympic swivel with satin stainless steel finish, used to safely connect 10-13mm chain to the 26kg or 34kg Olympic anchor during mooring. The chain connector swivel also facilitates raising the chain and anchor through the bow roller, avoiding typical shackle blockage problems. This Quick Olympic swivel, together with the Olympic anchor, features a self-tipping system, which allows the Olympic anchor to always be weighed in the correct position.
Suitable for use with the following chain sizes: DIN/ISO 10mm, ISO 12mm, DIN 13mm, G4/BBB 3/8″ and G4 7/16″.
Dimensions:
A: 172mm (6-49/64″)
B: 48.5mm (1-29/32″)
C: 15mm (37/64″)
D: 16mm (5/8″)
E: 24mm (15/16″)
F: 23.5mm (59/64″)
G: 22mm (55/64″)
H: 12mm (15/32″)
Key Features
Self-tipping system
10-13mm Chain
34kg Anchor maximum
Sand blasted stainless steel
| Material | Satin (Sand Blasted) Stainless Steel |
| Primary Construction | Stainless Steel |
| Brand | Quick |
| Application | Anchors Up To 34kg (75 lb) |
| Model | OS 13-34 |
| Diameter | 10mm to 13mm (3/8″ to 1/2″) |
| Size | 10mm – 13mm Chain |
| Country of Origin | Italy |
quick olympic swivels
Manufacturer Part Number: FYGAL1334XS0A00
