Quick Olympic Plow Anchor (60Kg / Polished Stainless Steel AISI 316)

Description

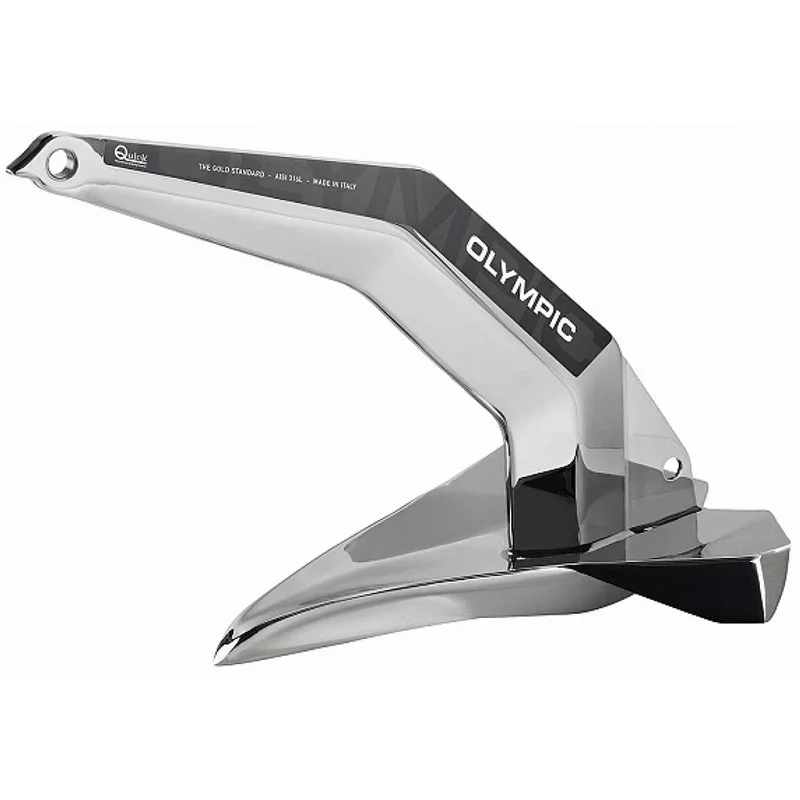

Quick Olympic anchor 60kg in polished stainless steel with a plough-shaped arm.

Anchor Specs:

• Weight: 60kg (132 lb)

• Recommended chain size: 13mm (33/64″)

• Boat length*: 20 meters (65 ft)

• Boat weight*: 43 tons (47.4 US tons)

• Material: AISI 316 Stainless steel with a polished finish

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

Dimensions (see image for reference):

A: 583mm (22-61/64″)

B: 983mm (38-45/64″)

C: 23mm (29/32″)

D: 25mm (63/64″)

E: 797.7mm (31-13/32″)

F: 688.4mm (27-7/64″)

G: 405.3mm (15-61/64″)

H: 340mm (13-25/64″)

I: 465.5mm (18-21/64″)

The Quick Olympic swivel is available as an optional extra, see part number: Q-OS60S.

Key Features

Detailed engineering & production process

Sheet metal forming, subsequently soldered

Polished AISI 316 Stainless steel

quick olympic anchorsquick olympic anchors brochure

Manufacturer Part Number: FYANLY060XP0A00
