Description

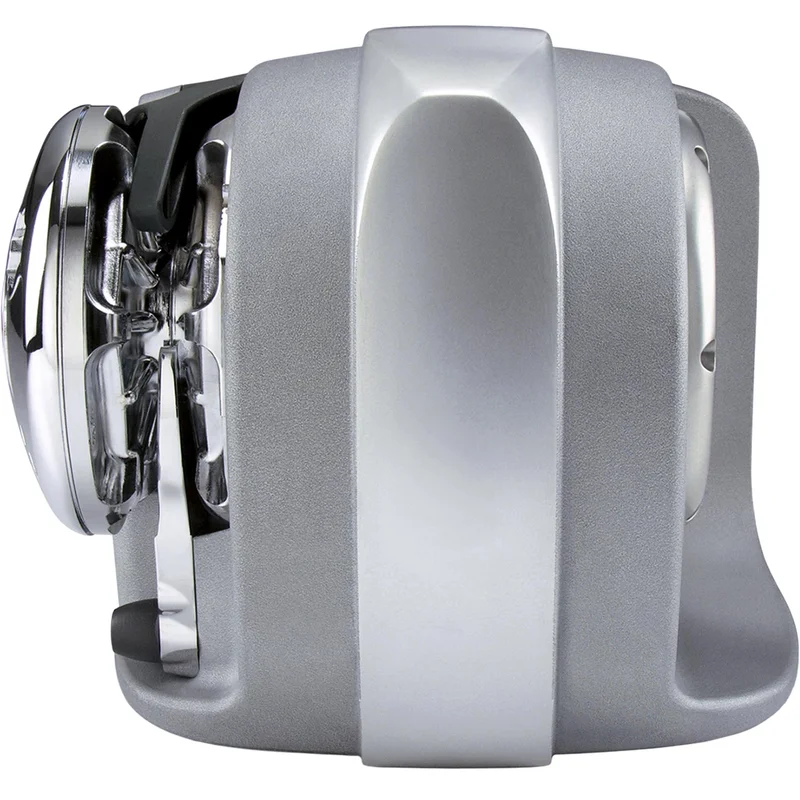

The Quick HC3 Hector 1524 horizontal windlass is suitable for boats from 12m to 15m (39 to 50ft). The on-deck windlass is easy to install with an Aluminium base, housed in a Composite jacket, making it well protected and durable. Supplied with pressure lever control and a built-in manual emergency recovery system, anchoring has never been easier. The Quick windlass features a 10mm (3/8″) gypsy which is suitable for 10mm ISO and 3/8″ G4 chain, as well as 5/8″ (15.8mm) rope.
Key Features
Horizontal on-deck windlass
Jacket in composite material
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Supplied with pressure lever
Integrated solenoids unit
Emergency manual lift system
Manual Free-Fall system
IP66 watertight motor
| Primary Construction | Composite |
| Suitable For | Chain and Rope |
| Boat Size | 12 to 15 metres in length |
| Gypsy Size | 10mm |
| Brand | Quick |
| Series | Hector HC3 |
| Model | 1524 |
| Voltage | 24V DC |
| Wattage | 1500W |
| Working Load | 185kg (407.8 lb), Maximum: 550kg (1212.2 lb) |
| Maximum Pull Load | 1500kg (3306.9 lb) |
| Maximum Chain Speed | 40.9 m/min (134.2 ft/min), At Working Load: 19.2 m/min (63.0 ft/min) |
| Amps | 85A at 185kg |
| Fuse | 50A Protection Circuit Breaker |
| Contents | Windlass, Handle, Bolts and Screws, Drill Template, User Manual |
| Approvals | CE |
| Height | 213mm (8-3/8″) |
| Width | 250mm (9-27/32″) |
| Depth | 373mm (14-11/16″) |
| Diameter | Mounting Holes: 11mm (7/16″) |
| Thickness | Deck: 20mm – 60mm (25/32″ – 2-11/32″) |
| Size | Motor Cable: 25mm2 (AWG3) |
quick hc3 hector manualquick hector drilling template
Manufacturer Part Number: FSHC15240010A00
