Description

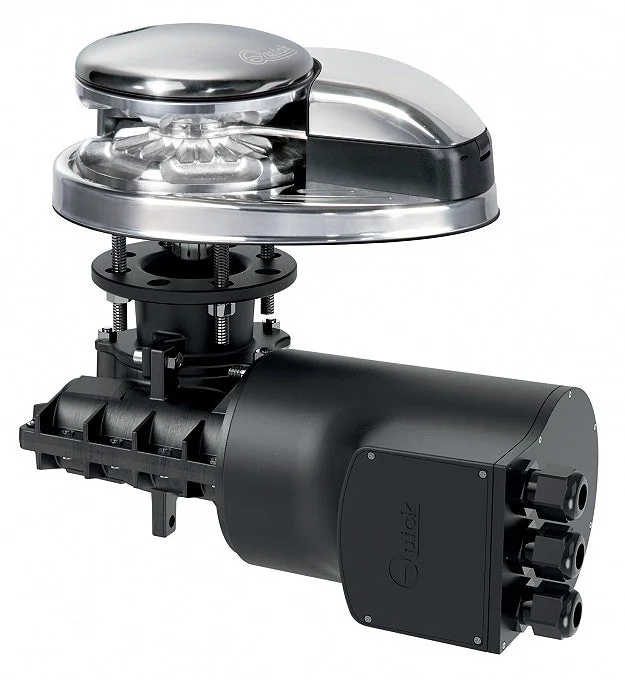

- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium in hard oxide
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Supplied with pressure lever
- Inspection lid
- Motor watertight to IP67
- Anodized aluminium
gearbox (1500W) - Technopolymer
gearbox (700W/1000W)
| DP | 700 W | 7 – 12 m | 23 – 40 ft |
| DP | 1000 W | 10 – 14 m | 33 – 46 ft |
| DP | 1500 W | 12 – 15 m | 39 – 49 ft |
The indication may vary according to the boat type and the anchor-rode type
| Gypsy and Drum | Ø 130 mm / 3″ 1/8 |
| GYPSY | 8 mm – 5/16″ | 10 mm – 3/8″ | ||||
| CHAIN | 8 mm | 8 mm | 5/16″ | 5/16″ | 10 mm | 3/8″ |
| DIN 766 | ISO | G4 | BBB | ISO (P.30) | G4 | |
| ROPE | 1/2″ (12,7 mm) – 9/16″ (14,2 mm) – 5/8″ (15,8 mm) | 5/8″ (15,8 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
Supplied accessories standard
Contactor units
| MODELS | T6315-12 | T6315-24 |
| 700 W | 12 V | 12 V |
| 1000 W | 12 V | 24 V |
| 1500 W | 12 V | 24 V |
Technopolymer handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
| Standard version | DP3 1500 / 1500 D | |
| Motor power | 1500 W | |
| Motor supply voltage | 12 V | 24 V |
| Maximum pull | 1100 Kg 2425 lb |
1100 Kg 2425 lb |
| Maximum working load | 470 Kg 1036 lb |
540 Kg 1190 lb |
| Working load | 160 Kg 353 lb |
180 Kg 397 lb |
| Current absorbtion @ working load (1) | 155 A | 85 A |
| Maximum chain speed (2) | 29,2 m/min 95.8 ft/min |
29,7 m/min 97.4 ft/min |
| Maximum chain speed @ working load (2) | 16,3 m/min 53.5 ft/min |
19,0 m/min 62.3 ft/min |
| Weight – DP3 – [without drum] | 20,4 Kg 45 lb |
20,4 Kg 45 lb |
| Weight – DP3 D – [with drum] | 21,4 Kg 47.2 lb |
21,4 Kg 47.2 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
Dimensions
Supplied accessories standard
Contactor units
| MODELS | T6315-12 | T6315-24 |
| 700 W | 12 V | 12 V |
| 1000 W | 12 V | 24 V |
| 1500 W | 12 V | 24 V |
Technopolymer handle
Optional accessories
Hydraulic magnetic
circuit breakerFoot SwitchesHandheld
remote controlChain
countersRadio remote
controlUP/DOWN
Control Board
