Lynx Class-T Power In

Description

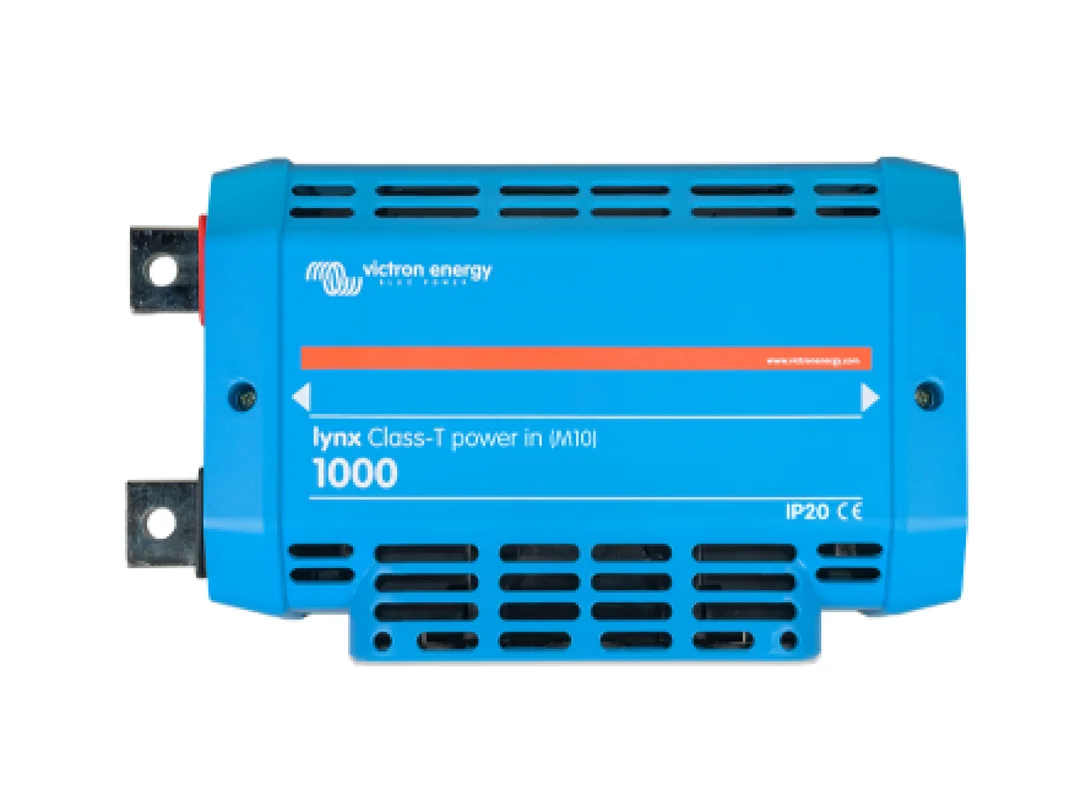

Lynx Class-T Power In (M10) Connects and fuses up to two strings of Lithium batteries. Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately

Product Information

The Lynx Class-T Power In Distributor (M10)

The Lynx Class-T Power In connects and fuses up to two strings of Lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, available in 225A, 250A, 350A and 400A, must be purchased separately.

For installations using three or more strings of Lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.

The Lynx Distribution System

The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. For more information, see the DC Distribution Systems product page.

The Lynx Distribution System consist of the following parts:

• Lynx Power In – A positive and negative busbar with four batteries or DC equipment connections, available in two versions, with M8 or M10 busbar.

• Lynx Class-T Power In – A positive and negative busbar that accepts two Class-T fuses and has two battery or DC equipment connections, available with M10 busbar.

• Lynx Distributor – A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, available in two versions, with M8 or M10 busbar.

• Lynx Shunt – A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has communication for monitoring and setup with a GX device.

• Lynx Smart BMS – For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and communication for monitoring with a GX device and the VRM portal. Available as a 500A model with M8 busbars or 1000A model with M10 busbars.

165891-Lynx_Class-T_Power_In-pdf-en (1)

Manufacturer Part Number: LYN060404010
