Description

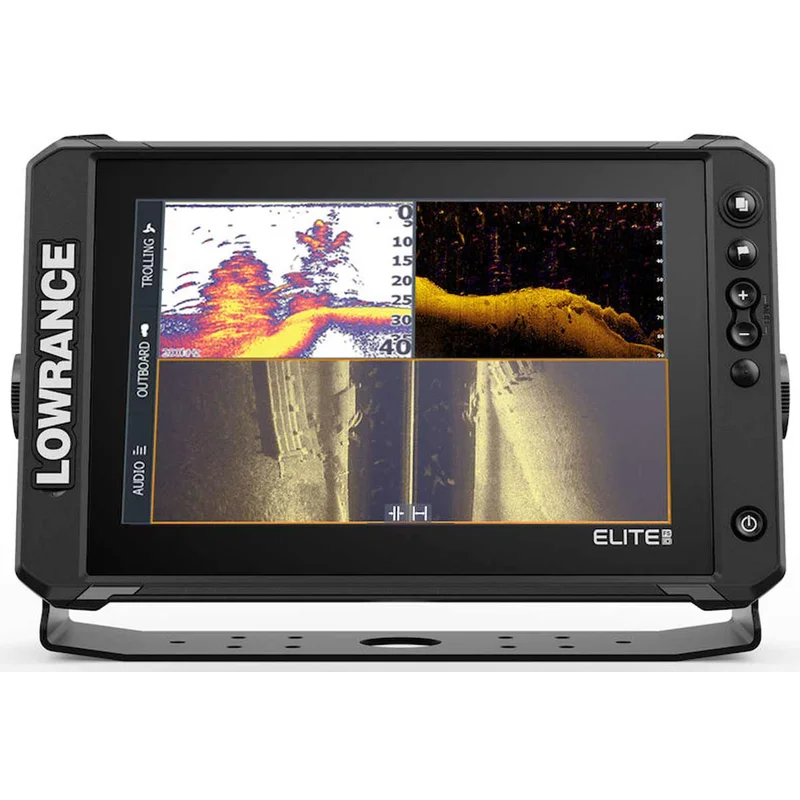

Lowrance Elite FS 10 with 3-in-1 Transducer (ROW) 000-16438-001
The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. From ActiveTarget 2 live sonar and extreme high-resolution Active Imaging and Active Imaging HD* with Lowrance CHIRP sonar, SideScan and DownScan Imaging to preloaded worldwide basemap with a choice of charting upgrade options, Elite FS gives you all the tools you need to find and catch more fish.
Target Fish Live with ActiveTarget 2 Live Sonar – Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget 2 Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.
Note: No split screen options in 10 & 12 Models.
Find More Fish with Proven Lowrance Sonar – See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognise fish from structure and cover on high-detailed DownScan images.
Multitude of Chart Options – Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics and more.
*Active Imaging HD requires S3100 Module
The Lowrance Elite FS 10 Fishfinder is supplied complete with:
– Lowrance 000-14489-001 Active Imaging 3-in-1 Transducer delivers images of fish and structure with more refined detail and at a longer range than any other structure imaging technology.
– Lowrance 000-14041-001 2-wire Power Only cable for Mark, Elite, Hook, Elite Ti, HDS
– Lowrance 000-0127-50 HDS Fuse & Fuse Holder
– Lowrance 000-16443-001 Protective suncover for Elite FS 10
– Lowrance 000-16056-001 HDS PRO 10 Bracket with knobs
Key Features
ActiveTarget 2 Live Sonar ready
Active Imaging 3-in-1 ready
Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
FishReveal
Preloaded with worldwide basemap with mapping options including C-MAP, Navionics & more
C-MAP Easy Routing, Navionics Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000 & Ethernet connectivity
Full touchscreen control of Recon & Ghost Trolling Motor & Power Pole Anchors
| Resolution | Display: 1200 x 800 |
| Selection Guide | Active Imaging 3-in-1 Transducer |
| Brand | Lowrance |
| Screen Size | 10″ |
| Series | Elite |
| Model | Elite FS 10 |
| Voltage | 12V DC (10.8V – 17V DC) |
| Cut Out | 288.08mm x 174.54mm (11.34″ x 6.87″) |
| Amps | Consumption at 13.8V DC with Full Backlight: Typical: 2.0A, Maximum: 2.5A |
| Fuse | 3A recommended |
| Contents | Active Imaging 3-in-1 Transducer, Cable (Power only) HDS/Elite/Hook, HDS Fuse & Holder, HDS Pro 10 Bracket, Elite FS 10 Suncover |
| Height | Dash mount: 205.1mm (8.07″), Gimbal mount: 209.92mm (8.26″) |
| Width | Dash mount: 315.17mm (12.40″), Gimbal mount: 325.44mm (12.81″) |
| Depth | Overall: 82.50mm (3.24″), Gimbal mount: 113.64mm (4.47″) |
| Weight | 1.66kg (3.66lbs) |
| Operating Temperature | -15°C to 55°C (5°F to 131°F) |
| Temperature Range | Storage: -20°C to 60°C (4°F to 140°F) |
| Warranty | 2 Years + 3 additional years of upgrade options (totaling 5 years) |
| Mounting | Gimbal Bracket & Dash Flush Mount |
elite fs installation guideelite fs quick start guideelite fs user manuallowrance elite fs 10 12 mounting template
Manufacturer Part Number: 000-16438-001
