Description

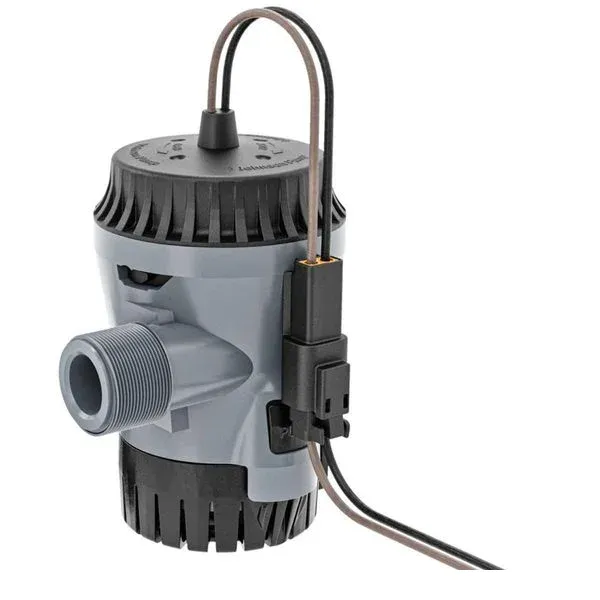

Johnson Aqua Void cartridge bilge pump 800 GPH 12V DC features an industry-first quick-change motor connection and reinforced click-in basket, to simplify cleaning and installation and it’s convenient and efficient. The Aqua Void bilge pump enhanced motor ensures reliability and performance in any condition for a worry-free boating experience.
The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.
Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.
Johnson Pump Marine is renowned for industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.
Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don’t miss this opportunity to enhance your boating experience. Get the Aqua Void today!
Please Note: This Aqua Void bilge pump is the OEM bulk packaged version; Dura-Ports and check valve must be purchased separately.
– Limited 3-Year Warranty
– 800 GPH Capacity
– Heightened Efficiency with an Increased Flow Rate – High Flow Impeller Design
– Quick-Change Motor Connection Enjoy Quick and Hassle-Free Cartridge Motor Changes or Capacity Upgrades. Industry First and Only Cartridge Motor Pump with included harness connection requiring no cutting and splicing of wires
– Water-cooled motor for long service intervals
– Compact, all-in-one motor/impeller unit with stainless steel 316 shaft
– No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses
– Meets the international standard, ISO 8849 marine
– Moulded T-Slot – Easy Installation with Switches
– Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
| Flow Rate | 3000 LPH (795 US GPH) |
| Flow Rate 1 Metre Head | 2100 LPH (560 US GPH) |
| Material | ABS Pump body, Nitrile Rubber Shaft seal & 316 Stainless Steel Shaft |
| Automatic Bilge Pumps | No |
| Flow Rate 2 Metre Head | 1560 LPH (405 US GPH) |
| Maximum Recommended Head | 4.4 Metres (14.5 feet) |
| Replaces | Johnson L550 33-1550-01 |
| Wire Size | 16 Gauge (1.3mm2) |
| Brand | Johnson |
| Series | Aqua Void |
| Voltage | 12V DC |
| Amps | 3.7A |
| Fuse | 5A |
| Approvals | ISO 8849 Marine |
| Height | 119mm (4.69″) |
| Width | 133mm (5.24″) |
| Weight | 0.36kg (12.6 oz) |
| Diameter | 69.8mm (2-3/4″) |
johnson aqua void bilge pump manual
Manufacturer Part Number: 10-13626-06
