Description

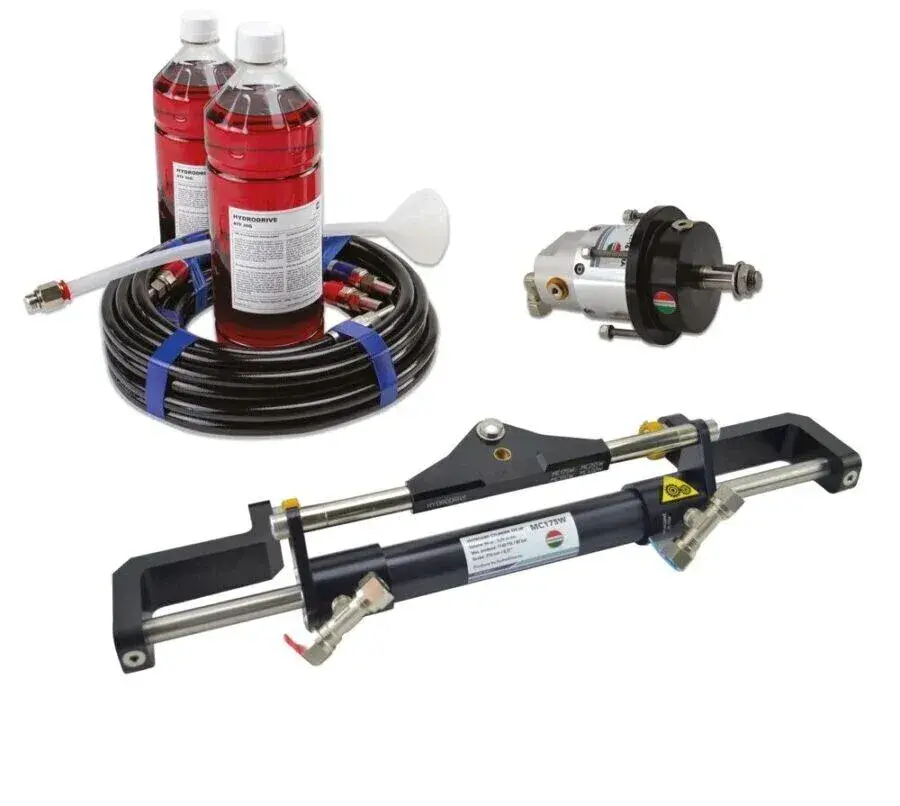

Hydrodrive MF175WTS outboard hydraulic steering system kit up to 175Hp with slider cylinder.
Compact horns mount for engines up to 175 Hp. The hydraulic pump comes with an Anti-Feedback valve and Automatic Pilot connection port. The Hydraulic Cylinder has a new mounting system with a two-position engine plate so you can find the best position for the engine bracket.
Hydraulic pump: TL1-16 MRA, 16 cc pump., 5,4 turns
Hydraulic cylinder: MC175WTS, 86 cc volume, stroke 208 mm
6+6 m (20) high-pressure twin hose set with fittings, 2×1 L hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
Output force: 290 kgf (640 lbf)
Torque:60 Kgm (434 lbf-ft)
Max speed: 55 kt
Turns: 5,4
Why Hydrodrive systems are different from other brands?
Flexible, high-pressure (twin) hose set with fittings
3 years of warranty
Quick and easy installation method
Average product life of more than 8+ years
No oil-top-ups
No ordinary maintenance during life time.
Universal Applications: Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more
Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.
Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, hydrodrive systems can prevent damage caused by excessive forces or torque.
