Description

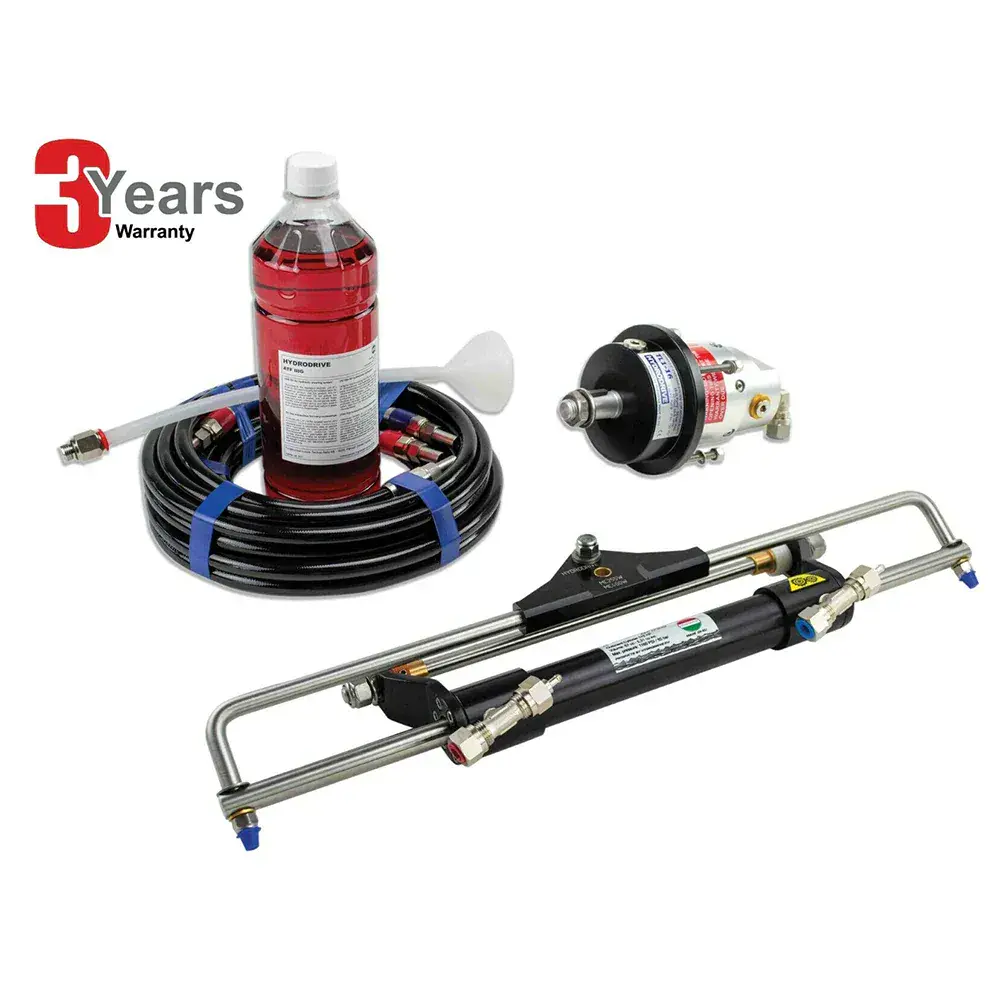

Hydrodrive MF175W outboard hydraulic steering system for engines up to 175HP with fixed cylinder.
The Hydraulic Cylinder has a new mounting system with a two-position engine plate so you can find the best position for the engine bracket. Twin engine arm included.
Hydraulic pump: TL1-16 MRA, 16 cc pump., Max 80 bar, 5,4 turns with Anti-Feedback Valve and Automatic Pilot Connection Port
Hydraulic cylinder: MC175W, 86 cc volume, Max 80 bar, Stroke 208 mm
6+6 m (20) high-pressure twin hose set with fittings, 2 L. hydraulic oil (E-HVLP 46) (temp.+60°/-30°.)
New Stainless-Steel Twin Engine Arm included
Output force: 290 kgf (640 lbf)
Torque: 60 Kgm (434 lb-ft)
Max speed: 55 knots
Why Hydrodrive systems are different from other brands?
Flexible, high-pressure (twin) hose set with fittings
3 years of warranty
Quick and easy installation method
Average product life of more than 8+ years
No oil-top-ups
No ordinary maintenance during life time.
Universal Applications: Designed to seamlessly fit leading marine engine brands such as Yamaha, Mercury, Evinrude, Suzuki, and more
Technology from the aircraft industry: Hydrodrive systems ensure smooth and accurate manoeuvring in any conditions.
Overload Protection: Hydraulic systems offer inherent overload protection mechanisms. By controlling the pressure or flow rate within the system, hydrodrive systems can prevent damage caused by excessive forces or torque.
