Description

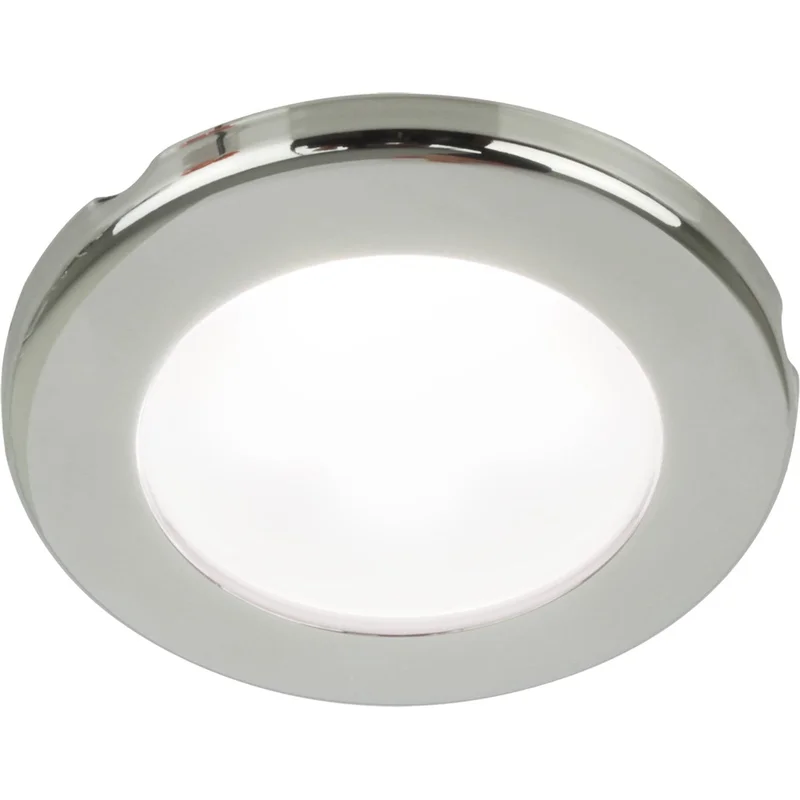

The Hella EuroLED 75 series of cabin lights are designed to provide a wide, even spread of light to reduce glare so as not to cause eye strain and discomfort. The low power LED bulb offers power and heat reductions on board, whilst being a durable, solid state light which you can rely on. The EuroLED 75 is supplied with a 150mm length of twin core marine grade electrical cable and can be fully controlled and dimmed via Voltage Resistive or PWM dimming products such as ASAP Part Number 719195.
The 2JA 958 110-121 model features a polished stainless steel 316 rim. The light is installed into a 50mm x 16mm recess with 3 screws which are then concealed by the housing. It provides white (5000K) light on 24V systems. The light is completely sealed (IP 6K9K) and is covered by Hella’s 5 year warranty for faults in material, components or workmanship. They are aimed to give a real ‘fit and forget’ solution to interior lighting.
| Case Colour | Stainless Steel |
| Material | Stainless steel rim |
| Bulb | LED |
| Primary Construction | Stainless Steel 316 |
| Switched | No |
| Bulb | LED |
| Light Colour | Daylight White |
| Brand | Hella |
| Series | EuroLED 75 |
| Model | 2JA 958 110-121 |
| Voltage | 24V DC |
| Wattage | 3W |
| Amps | < 0.1A at 24V DC |
| Approvals | CE, RCM |
| Depth | Recess: 16mm |
| Diameter | Overall: 72mm, Recess: 50mm |
| Warranty | 5 Years |
EuroLED 75 Instruction Sheet
Manufacturer Part Number: 2JA 958 110-121
