Description
- Sheave Ø (mm) 29 mm
- Sheave Ø (in) 1 1/8 in
- Length (mm) 66 mm
- Length (in) 2 5/8 in
- Weight (g) 26 g
- Weight (oz) .9 oz
- Maximum line Ø (mm) 8 mm
- Maximum line Ø (in) 5/16 in
- Maximum working load (kg) 150 kg
- Maximum working load (lb) 330 lb
- Breaking load (lb) 1000 lb
- Breaking load (kg) 454 kg
- Shackle pin Ø (mm) 4 mm
- Shackle pin Ø (in) 5/32 in
- Footnote Maximum working loads and breaking loads for blocks based on cam strengths.

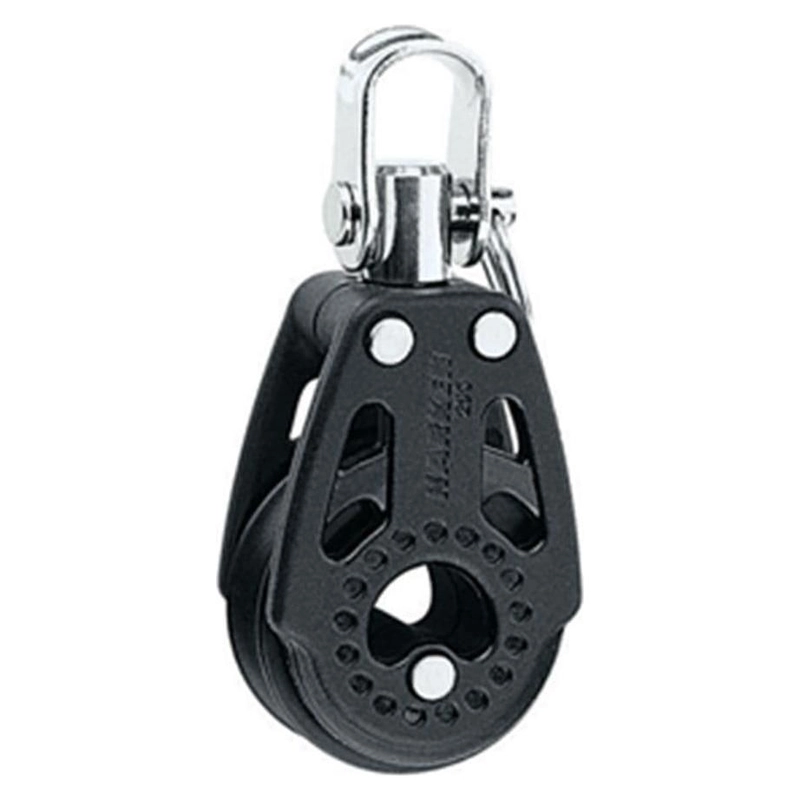

Low-friction Carbo Air blocks are lightweight, strong, reliable and affordable. Companions to the popular Harken Black Magic block line, these small, compact blocks have very high working loads for safe, easy trimming.
The purchaser is responsible for choosing the correct product for its particular application.
Not to be used for lifting.
