Description
- Sheave Ø (mm) 16 mm
- Sheave Ø (in) 5/8 in
- Length (mm) 29 mm
- Length (in) 1 1/8 in
- Weight (g) 11 g
- Weight (oz) .38 oz
- Maximum line Ø (mm) 5 mm
- Maximum line Ø (in) 7/32 in
- Maximum working load (kg) 113 kg
- Maximum working load (lb) 250 lb
- Breaking load (lb) 1200 lb
- Breaking load (kg) 544 kg

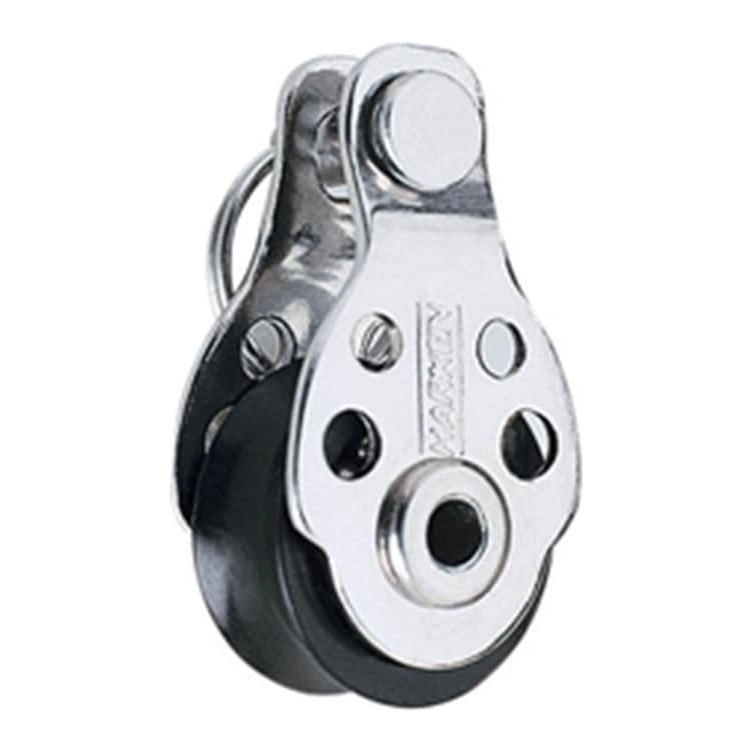

The 16 mm is Harkens smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load.
Typically used in the Laser XD Kit deck blocks for the cunningham and outhaul control lines leading into the cleats.
The purchaser is responsible for choosing the correct product for its particular application.
Not to be used for lifting.
