Description

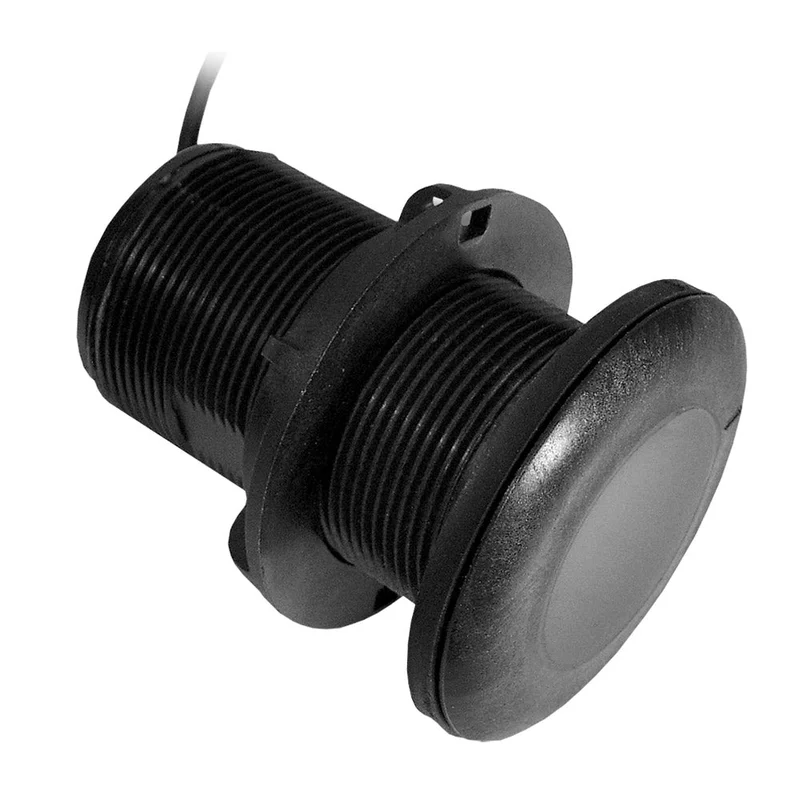

P19 20 Degree Tilted Element™ Thru-Hull with 8 pin Connector for Garmin
Minimize Your Drag
The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echo sounding up to 206M (700′). These nearly flush units minimize drag as only 5mm (2/10″) of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings.
Applications
- Cruising powerboats and sailboats
- Sailboats
Features
- Depth and temperature
- Fixed 20° tilted versions for 16° to 24° hull deadrise
- Right angle cable exit offers low headroom and protection when transducer is stepped on
- Included rubber washer allows tightening of the hull nut to irregular hull surfaces
- Housings are ABYC H-27 compliant
- Optional temperature sensor
- Plastic housing
- Boat Size: Up to 9M (30′)
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Mounting Style: Thru-Hull
- Imaging: Standard
- Chirp: No
- Cable Length (Feet): 30′
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Box Dimensions: 4″H x 6″W x 8″L WT: 2.05 lbs
- UPC: 753759971755
Quick Guide (pdf)
Owner’s Manual (pdf)
Brochure (pdf)
