Description

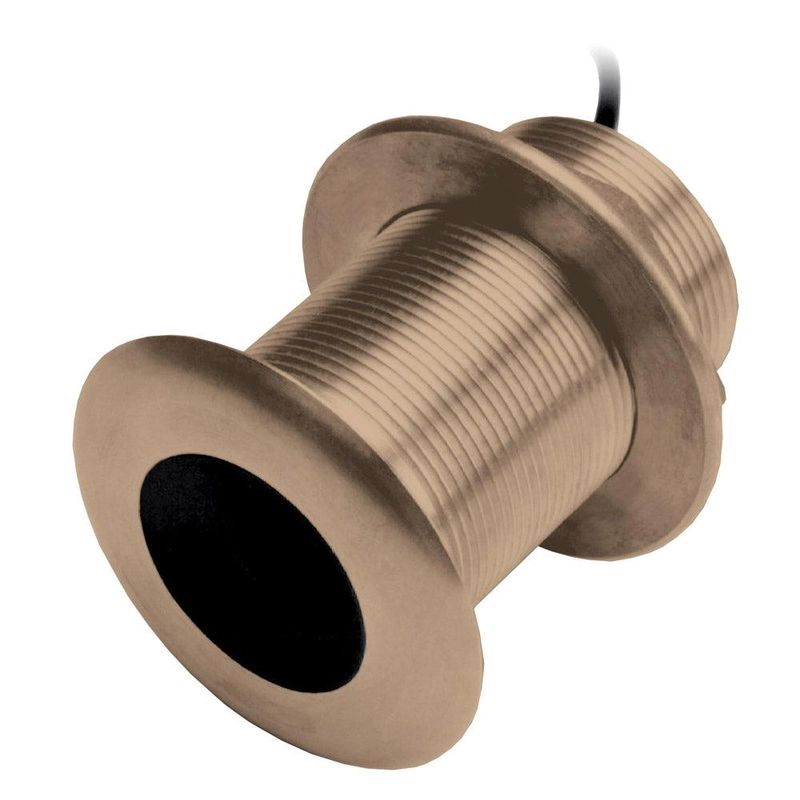

Airmar B75H
w/20° Tilt
600W
Flush-mounted bronze housing,tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, and high frequency versions provide maximum flexibility for the choice of frequencies. Excellent for fiberglass and wood hulls.
Max Depth – 800′
Suppoarted Deadrise/Transom Angles – 16-24° Deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Temperature: Yes
- Speed Included: No
- Pins: 8
- Mounting Style: Thru-Hull
- Chirp: High
- Cable Length (Feet): 39′
- Imaging: Standard
- Box Dimensions: 5″H x 8″W x 12″L WT: 6.1 lbs
- UPC: 753759971984
Owner’s Manual (pdf)
Brochure (pdf)
