Description

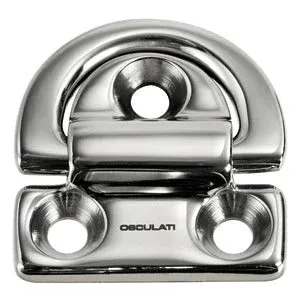

Mirror-polished pad eyes with full forge eye for maximum mechanical strength. Fitted with anti-vibration rubber. It comes in a recyclable display package showing breaking load values. Same centre distance as Wichard having similar dimensions.
| Type | Single, large | mm – A | 77 | mm – B | 46 | mm – C | 75 |
| mm – D | 40 | Ring section Ø mm | 10 | Screw Ø mm | 6 | Breaking load kg | 7000 |
View in catalogue
Related Products
| Item | Type | mm – A | mm – B | mm – C | mm – D | Ring section Ø mm | Screw Ø mm | Breaking load kg |
|---|---|---|---|---|---|---|---|---|
| 39.870.00 | Single, small, 2 bores | 46 | – | 45 | 23 | 6 | 6 | 1800 |
| 39.870.01 | Single, small | 47 | 27 | 45 | 25 | 6 | 6 | 2200 |
| 39.870.02 | Single, medium | 61 | 35 | 59 | 30 | 8 | 6 | 4000 |
| 39.870.03 | Single, large | 77 | 46 | 75 | 40 | 10 | 6 | 7000 |
| 39.871.01 | Double, small | 87 | 27 | 45 | 60 | 6 | 6 | 3600 |
| 39.871.02 | Double, medium | 99 | 35 | 59 | 60 | 8 | 6 | 6800 |
| 39.871.03 | Double, large | 126 | 45 | 75 | 79 | 1 |
Related Files
- 3D model
UOM: PZ
Height: 2 cm
Weight: 0.37 kg
Width: 11 cm
Cubage: 286 cm³
Length: 13 cm
