Description

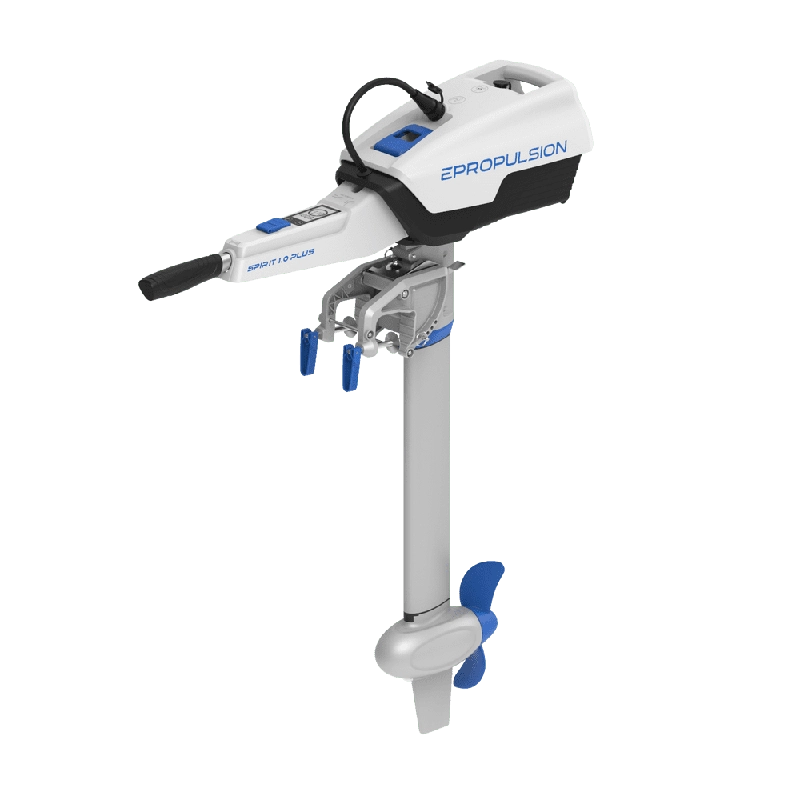

Spirit 1.0 Plus Short Shaft – 1kW Electric Outboard Motor
1276 Wh Battery | 1kW | 3HP | Short Shaft | 19.3KG
The Spirit 1.0 Plus is a versatile 1kW motor, designed for a variety of boats including dinghies, fishing vessels, sailboats, and tenders. This portable powerhouse boasts a large, integrated 1,276 Wh lithium battery for extended travel distance. Offering agility, lightweight construction, and eco-friendly energy, it stands out as a top-notch marine choice.
Specifications:
Power: 1 kW (3HP equivalent**)
Standard Battery: Spirit Battery Plus, 1276 Wh li-ion polymer
Input Voltage: 39V 60V
Motor Weight: 10.6 kg
Battery Weight: 8.7 kg
Standard Charging: 8.5 Hrs
Fast Charging: 3.5 Hrs
External Battery: Yes, and E-Series Battery recommended
Propeller: 11 × 5.8 2-blade composite propeller
Trim / Tilt Angle: 0°, 7°, 14°, 21° / 70°
Shaft Length: Short
Control: Tiller
Hydrogeneration: No
Motor: Brushless DC motor
Direct Driver: Yes
** Any reference to horsepower (HP) for electric motors is a theoretical equivalent based on thrust and performance characteristics, and not a direct measure of power. This comparison is intended for illustrative purposes only and may not reflect exact power equivalency.
Performance, Speed and Range:
Spirit 1.0 with integrated 1276 Wh battery
| Power (W) | Speed (km/h)* | Range (km)* | Runtime* |
| 35 W | 3.5 | 129 | 36:25 |
| 65 W | 4.3 | 85.3 | 19:35 |
| 125 W | 5.6 | 56 | 10:00 |
| 250 W | 7.1 | 35.5 | 05:00 |
| 500 W | 8.5 | 21.3 | 02:30 |
| 750 W | 9.2 | 15.3 | 01:40 |
| 1000 W | 10 | 12.5 | 01:15 |
* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.
