Description

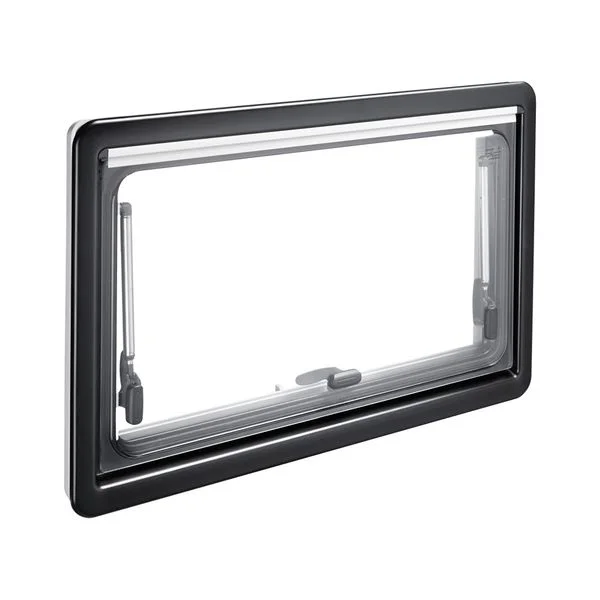

A high quality and easy-to-install top-hung window designed for caravans and motorhomes. Measuring 500mm in width by 350mm in height, this window has friction hinges enabling smooth opening to any position.
The double acrylic glazed windowpane provides insulation and its polyurethane frame matches the construction of standard caravans and motorhomes.
The window features a built-in aluminium-coated darkening blind and a practical flyscreen to keep insects out. The flyscreen and blind can be adjusted separately, or conveniently clipped together for simultaneous adjustment with one hand.
• Size (W x H): 500 x 350mm
• Overall size (W x H): 544 x 380mm
• Space size (W x H): 500 x 348mm
• Clearance dimensions (W x H): 404 x 204mm
• Hinge type: Top-hung
Key Features
Double acrylic glazing and polyurethane frame for excellent insulation
Built-in aluminium-coated darkening blind
Flyscreen to keep insects out
Quick and easy installation
Friction hinges allow opening to any position
Secure locking system prevents window being opened from outside
| Suitable For | Fiat Ducato |
| Brand | Dometic |
| Type | Windows |
| Model | S4 Windows |
| Height | 350mm |
| Width | 500mm |
| Weight | 4.7kg |
| Approvals | eMark |
| Country of Origin | Germany |
DownloadsDrawings Dometic S4 WindowInstallation and Operating Manual Dometic S4 Window
Manufacturer Part Number: 9104115545
