Description

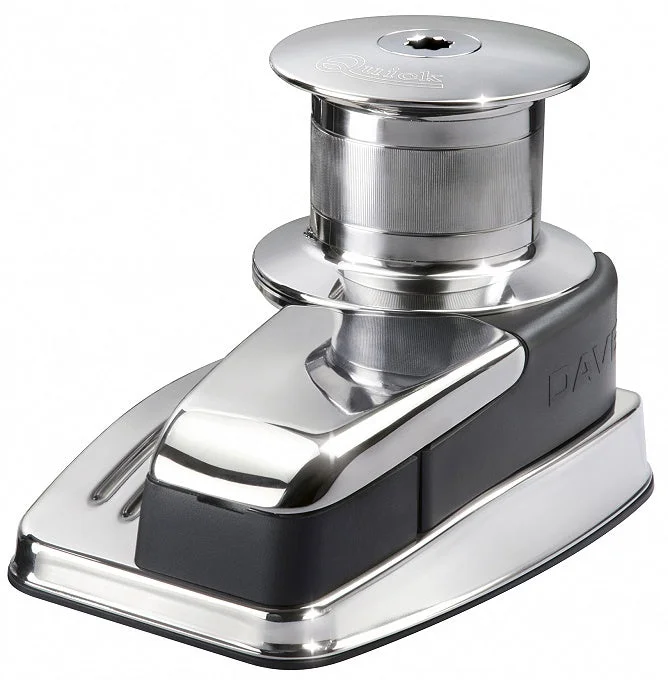

- Vertical windlasses
- Stainless steel Aisi 316 base and anodized aluminium
- With and without drum
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Manual Free-Fall system
- Safety mechanical band brake
- Supplied with pressure lever
- Inspection cover
- Motor watertight to IP67 (1700W)
- Motor watertight to IP66 (2000/2300W)
- Anodized aluminium gearbox
| Dave | 1700 W | DC | 12 – 16 m | 39 – 52 ft |
| Dave | 2000 W | DC | 16 – 20 m | 52 – 66 ft |
| Dave | 2300 W | DC | 20 – 24 m | 66 – 79 ft |
| Dave | 3000 W | DC | 20 – 24 m | 66 – 79 ft |
| Dave | 3000 W | AC | 15 – 25 m | 49 – 82 ft |
| Dave | Hydro | 15 – 25 m | 49 – 82 ft |
The indication may vary according to the boat type and the anchor-rode type
| Gypsy and Drum | Ø 170 mm / 6″21/64 |
| GYPSY | 10 mm – 3/8″ | 12/13 mm | 14 mm | |||||||
| CHAIN | 10 mm | 10 mm | 3/8″ | 3/8″ | 13 mm | 12 mm | 7/16″ | 14 mm | 14 mm | 1/2″ |
| DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | DIN 766 | ISO | G4 | |
| ROPE | 3/4″ (19 mm) | 3/4″ (19 mm) | 3/4″ (19 mm) |
The values in the table refer to a three-strand polyester rope with a rope/chain splice manufactured with the “Slim Splice Quick®” system.
| Standard version | DV5 3000 X/Y – 3000 X/Y D |
| Motor power | 3000 W |
| Motor supply voltage | 24 V |
| Maximum pull | 3100 Kg 6834 lb |
| Maximum working load | 1200 Kg 2646 lb |
| Working load | 400 Kg 882 lb |
| Current absorbtion @ working load (1) | 145 A |
| Maximum chain speed (2) | 39,2 m/min 128.6 ft/min |
| Maximum chain speed @ working load (2) | 19,3 m/min 63.3 ft/min |
| Weight – Dave – [without drum] | 61,3 Kg 135.1 lb |
| Weight – Dave D – [with drum] | 64,7 Kg 142.6 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 12/13 mm chain |
Dimensions
Supplied accessories standard
| Contactor units | Technopolymer handle | |||||||||||||||||||||
|
Optional accessories
| Brake control with handwheel |
| Hydraulic magnetic circuit breaker |
UP/DOWN Switches | handheld remote control |
Chain counters |
Radio remote control |
| UP/DOWN Control board |
Proporzional control |
