Class T Fuse 225AMP

Description

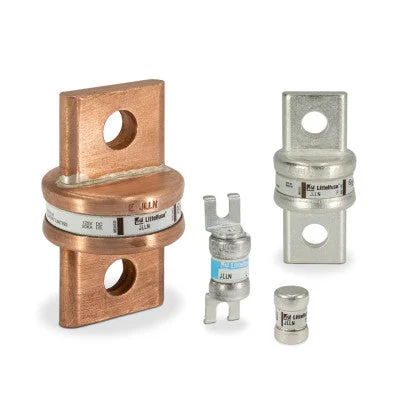

Class T Fuse 225AMP – JLLN-225A 225-400A Body size (will fit Lynx Class T)

Product Information

JLLN / JLLS series fuses are less than 1/3 the size of comparable Class R fuses and are typically used for short circuit protection of drives and surge sensitive components. When rated in accordance with the NEC*, JLLN / JLLS fuses provide fast-acting overload and short circuit protection for non-inductive circuits and equipment.

Features/Benefits

• Extremely current-limiting
• Compact design
• 200 kA interrupting rating
• JLLN 35–60 amperes available with PCB mounts

Applications

Variable speed drive protection

Power conversion devices (inverters, rectifiers, UPS)

Power supplies and power distribution units

Compact mains switches

Littelfuse JLLN JLLS

Manufacturer Part Number: 8-25117
