Description

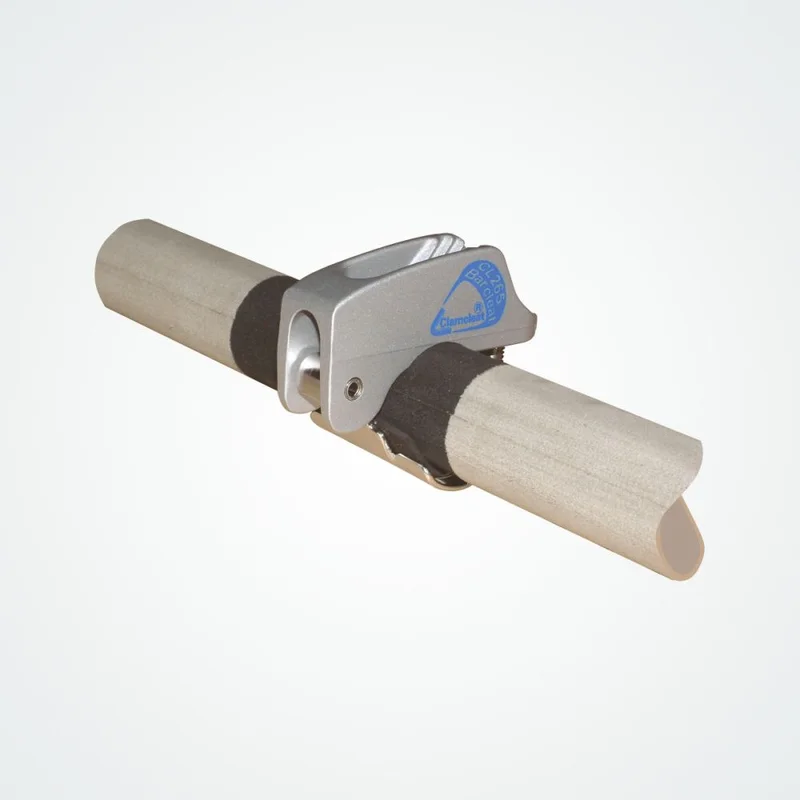

The CL265 is suitable for any bar with fixed or offset leader line adjustment.- Hands stay on the bar while adjusting.- Lock on, lock off with small twist of the bar to control the power in ANY position.- Easier to do one-handed and hands-free from aluminium for light weight and durable performance the CL265 is available in two finishes:1. CL265 has a silver stove enamel finish for a cost effective, high quality coating. Suitable for all inland and most coastal kiting.2. CL265AN has a hard anodised finish to give the ultimate hard wearing surface. Excellent for extreme coastal ready to fit to a bar.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 4 – 8mm | 5/32 – 5/16″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | N/Amm | N/A” | |
| Length | 64mm | 2 1/2″ | |
| Width | 18mm | 11/16″ | |
| Height | 35mm | 1 3/8 | |
| Bolt Size | M6 | 1/4″ (provided) | |
| Screw Size | N/A | N/A | |
| Weight | 60gms | 2.1oz |
Cleats for tubes & poles Leaflet (2 pages)(245.05 kB)CL265 Instruction Leaflet (1 page)(126.30 kB)CL265-Installation-Drawing (Prints on A4 & US Letter Paper)(228.85 kB)
