Description

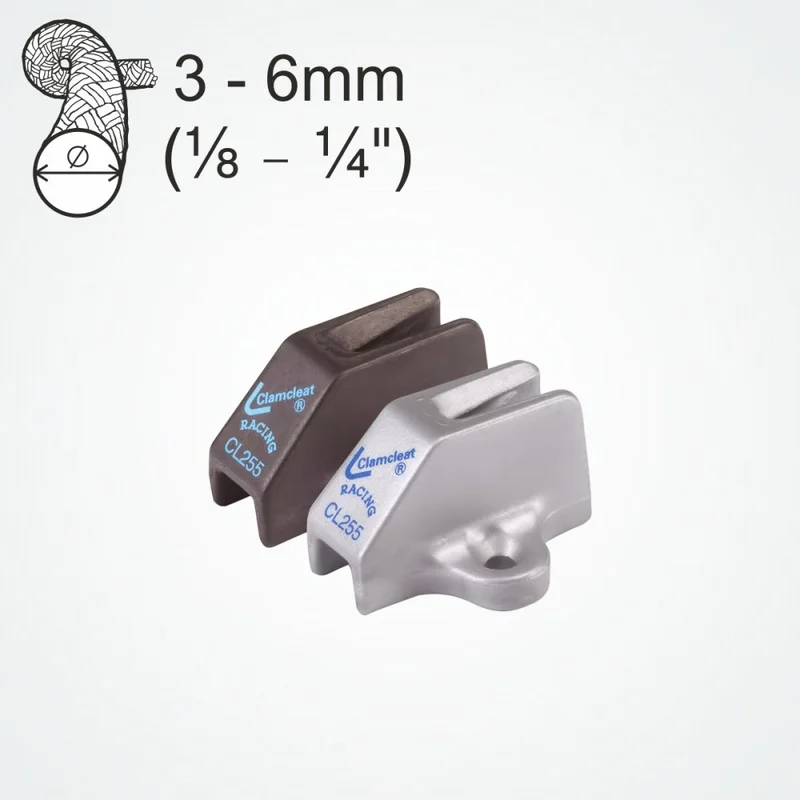

The teeth in this cleat are above the rope so that when un-cleated, the rope automatically drops away and can run freely. Making it ideal for through-deck or through-mast applications. The CL255 is used as part of a system, that prevents glass being blown into a room after an explosion. Instead the glass bounces off the rope held by 2 pairs of the CL255 and out of harms sheet of glass is bonded with laminate to keep it in one cleats were chosen for their ability to withstand a bomb blast and were put through a rigorous series of tests before being selected.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 3 – 6mm | 1/8 – 1/4″ | |
| Material | Aluminium | Aluminium | |
| Hole Centres | 27mm | 11/16″ | |
| Length | 46mm | 1 13/16″ | |
| Width | 43mm | 1 11/16″ | |
| Height | 26mm | 1 1/32 | |
| Bolt Size | M4 | #8-32. 5/32″ | |
| Screw Size | 4.2 | No 10 | |
| Weight | 28gms | 1oz |
Cleats for Dinghy masts leaflet (2 pages)(403.90 kB)CL255-Installation-Drawing (Prints on A4 & US Letter Paper)(92.91 kB)CL255 Instruction leaflet (1 page)(76.02 kB)
