Description

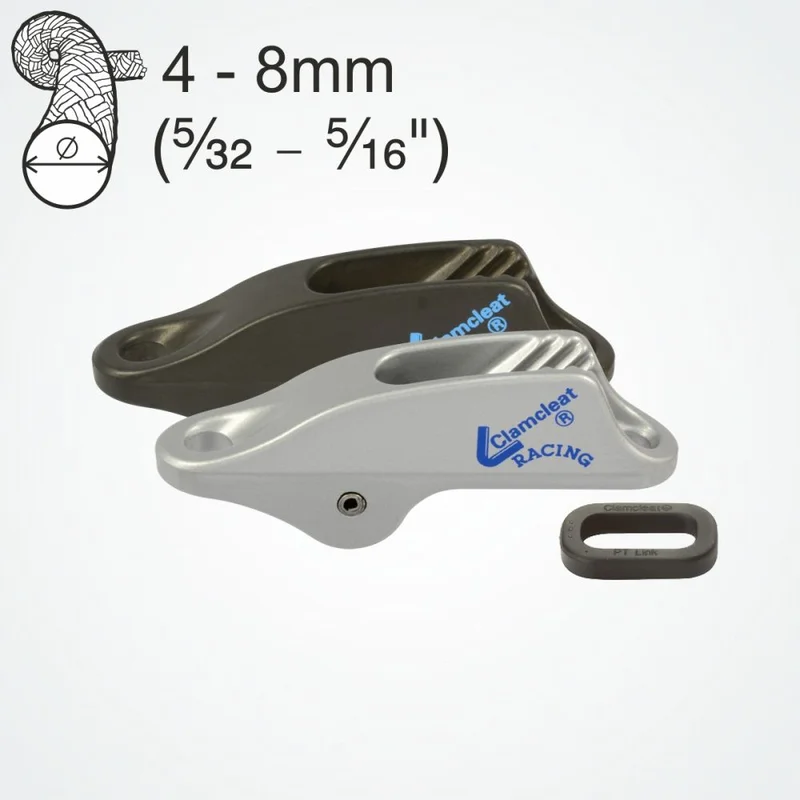

The Sailor’s preferred choice for adjusting dinghy trapeze lines. Also used for vangs & kicking straps; outhauls and small dinghy forestays. The Clamcleat® CL253 offers a light weight and compact solution for rope adjustment where a quick, positive lock, that is easy to release, is required. Each Clamcleat® CL253 is supplied with a black “link” (PTLINK). This makes releasing the rope a lot easier. For windsurfing, the CL253 can be used as part of a adjustable downhaul system. The cleat has an in-built you are using this cleat to support your weight, it should be regularly inspected. Wearing or scuffing of the surface finish is there is any sign of wear or damage to the working or load-bearing parts, the cleat should be from aluminium for light weight and durable performance, two finishes are available: 1. CL253 has a silver stove enamel finish for a cost effective, high quality coating.2. CL253AN has a hard anodised finish to give a hard wearing surface.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter | 4 – 8mm | 3/16 – 5/16″ | |
| Material | Aluminium & Nylon | Aluminium & Nylon | |
| Hole Centres | 72mm | 2 13/16″ | |
| Length | 90mm | 3 9/16″ | |
| Width | 18mm | 11/16″ | |
| Height | 35mm | 1 3/8 | |
| Bolt Size | n/a | n/a | |
| Screw Size | n/a | N/A | |
| Weight | 46gms | 1.6oz |
Outhaul & Downhaul Systems leaflet (1 page)(1.40 MB)Agricultural Applications for Clamcleat® rope cleats(571.06 kB)CL253-Installation-Drawing (Prints on A4 & US Letter Paper)(43.63 kB)CL253 3D PDF (Open in Adobe Acrobat Reader)(662.37 kB)CL834 leaflet (1 page)(121.17 kB)
